Recently, we18luck 登录

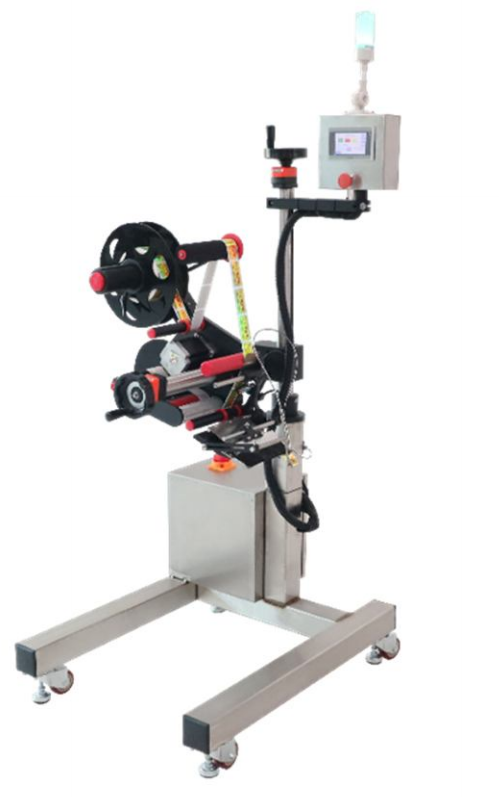

to Russia. The gosunm assembly line header is a magic tool for connecting to your production line. It can be equipped with the assembly line to label the flat surface, side surface, and curved surface of the products passing through, realizing online labeling.
1.GST-512 side assembly line labeling heads 2 sets (servo motor + single traction)
There are two devices: one for reverse and one for forward.
The conveying height of each labeling head and the label size are different.
2.GST-511 upper plane assembly line labeling heads9 units (servo motor + double traction)
Among these 9 devices, there are: 3 reverse + 6 forward
The conveying height of each labeling head and the label size are different
The conveying height and label size corresponding to 1 reverse GST-512 are as follows:
Outer box size: 380*285*220mm
Label speed: 5pcs/min, maximum label size: 100*100mm
Conveying size: L1400*W700*H620 mm, corresponding to 1 GST-512 side labeling head with forward label head
(Equipment name: Reverse GST-512 H620)
The conveying height and label size corresponding to 1 forward GST-512 are as follows:
Outer box size: 301*161*274mm
Label speed: 5pcs/min, maximum label size: 100*100mm
Conveying size: L1400*W345*H870 mm, corresponding to 1 GST-512 side labeling head with reverse label head
(Equipment name: Forward GST-512 H870)
The above two devices are both for labeling of this standard outer box packaging.
The conveying height and label size of the two reverse GST-511s are as follows:
Labeling speed: 60-70pcs/min, maximum label size: 50*75mm
The size of the first conveying line is: L1000*W300*H1200 mm
The size of the second conveying line is: L1000*W300*H650 mm
These are the upper flat labeling heads of the GST-511 corresponding to the two forward labeling heads
(The equipment names are: Reverse GST-511 H1200 + Reverse GST-511 - H650)
The conveying height and label size corresponding to 1 reverse GST-511 are as follows:
Label speed: 60-70pcs/min, maximum label size: 50*75mm
The dimensions of the 2 conveyors are the same, the dimensions are: L900*W270*H1000mm
Corresponding to 1 GST-511 upper flat labeling head with reverse label head
(Equipment name: Reverse GST-511 - H1000)
The conveying height and label size corresponding to 1 forward GST-511 are as follows:
Label speed: 75-85pcs/min, maximum label size: 50*75mm
Conveying size: L900*W285*H1250 mm
Corresponding to 1 GST-511 upper flat labeling head with forward label head
(Equipment name: Forward GST-511 H1250)
The conveying height and label size corresponding to 1 forward GST-511 are as follows:
Label speed: 60-70pcs/min, maximum label size: 50*75mm
The dimensions of the 2 conveyors are the same, the dimensions are: L900*W270*H1000mm
Corresponding to 1 forward label head GST-511 upper plane labeling head
(Equipment name: forward GST-511 - H1000)
The conveying height and label size corresponding to 1 forward GST-511 are as follows:
Label speed: 45-55pcs/min, maximum label size: 50*75mm
Conveying size: L1500*W270*H1400 mm
Corresponding to 1 forward label head GST-511 upper plane labeling head
(Equipment name: forward GST-511-H1400)
The above 6 devices are all corresponding to the labeling of this hollow powder packaging
There are two types of hollow noodle packaging, namely pillow packaging bags and pancake packaging bags.
There are also many sizes involved, please check as follows:
Hollow noodle pillow packaging bag: 400-500 g
Length x width x thickness: 230*160*25 mm.
Length x width x thickness: 240*160*25 mm.
Length x width x thickness: 250*160*35 mm.
Length x width x thickness: 260*165*40 mm.
Length x width x thickness: 270*165*40 mm.
Length x width x thickness: 285*165*45 mm.
Hollow noodle pillow packaging bag: 800-900 g
Length x width x thickness: 280*180*40 mm.
Length x width x thickness: 290*180*40 mm.
Length x Width x thickness: 300*180*45 mm.
Length x width x thickness: 310*180*50 mm.
Length x width x thickness: 320*180*55 mm.
Length x width x thickness: 330*180*60 mm.
Powder cake packaging bag: 400-450 g
Length x width x thickness: 180*125*40 mm.
Length x width x thickness: 180*125*50 mm.
Length x width x thickness: 180*125*60 mm.
Length x width x thickness: 190*125*40 mm.
Length x width x thickness: 190*125*50 mm.
Length x width x thickness: 190*125*60 mm.
Length x width x Thickness: 200*125*40 mm.
Length x width x thickness: 200*125*50 mm.
Length x width x thickness: 200*125*60 mm.
Length x width x thickness: 210*135*50 mm.
Length x width x thickness: 210*135*60 mm.
The conveying height and label size corresponding to 1 forward GST-511 are as follows:
Labeling speed: 115-125pcs/min, maximum label size: 50*75mm
Conveying size: L1700*W370*H1140 mm
Corresponding to 1 forward labeling head of GST-511 upper plane
(Equipment name: forward GST-511 - H1140)
The above 1 device corresponds to the labeling of this long strip pasta packaging
There is only one type of long strip pasta packaging, but the packaging size involves two different specifications and weights, as follows:
Long strip pasta pillow packaging: 400-500 g
Length x width x thickness: 310*90*16 mm.
Long strip pasta pillow packaging: 800-1000 g
Length x width x thickness: 310*125*25 mm.
The conveying height and label size corresponding to 1 forward GST-511 are as follows:
Outer box size: 380*285*220mm
Label speed: 5pcs/min, maximum label size: 100*100mm
Conveying size: L1400*W700*H620 mm, corresponding to 1 forward label head GST-511 upper plane labeling head
(Equipment name: forward GST-511 H620)
The conveying height and label size corresponding to 1 forward GST-511 are as follows:
Outer box size: 301*161*274mm
Label speed: 5pcs/min, maximum label size: 100*100mm
Conveying size: L1500*W345*H870 mm, corresponding to 1 forward label head GST-511 upper plane labeling head
(Equipment name: forward GST-511 H870)
The above two devices are both labeled for this standard outer box packaging
There are 9 machines in total, 7 of which need to directly attach labels to pasta and macaroni packaging bags, and the remaining 2 machines need to attach labels directly to outer boxes.
It is necessary to connect with the customer's on-site delivery and provide specific information.
1. Labeling can be done on the customer's production line, which is easy to operate, saves labor and improves production efficiency.
2. Simple matching, can be directly installed on the production line to achieve online labeling.
3. The personalized function interface is easy to operate, simple to debug and reliable in performance.
Gosunm is a provider oflabeling machinesandintelligent packaging solutions, with independent core technologies in industrial automation, mainly focusing on automated production lines, automated assembly, automated labeling, automated packaging, etc. Among them, labeling machines mainly include a general series for round bottles, flat, side, and curved surfaces. Welcome to consult!
