Static DWS Sorting System with Real-time Print & Apply Label Applicator

The Static DWS Sorting System with Real-time Print & Apply Label Applicator is a highly efficient automated logistics equipment for static volume measurement, weighing, scanning, labeling and sorting of parcels.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • Gosunm

Product Description

The Static DWS Sorting System with Real-time Print & Apply Label Applicator is a highly efficient automated logistics equipment for static volume measurement, weighing, scanning, labeling and sorting of parcels. The equipment consists of a Conveyor System, Static DWS, Real-time Print & Apply Labeling and provides an efficient and accurate parcel handling solution for the logistics and e-commerce industries.

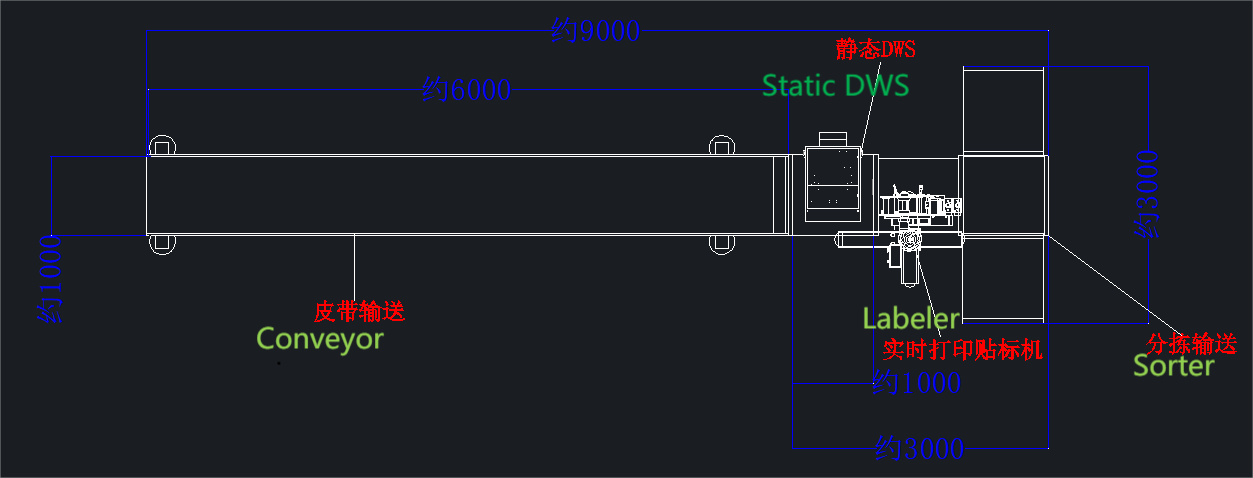

Drawing


Gosunm has mastered the core technology in the field of logistics sorting and package labeling, and is able to organically combine these two technologies to produce more efficient and convenient equipment. This set of equipment meets the customer's package weighing + volume measurement + code scanning + real-time printing and labeling + sorting needs, and can be linked to the customer's own warehouse management system, ERP and other systems.


By manually placing the parcels waiting to be processed (with the side of the face sheet information face up) on the conveyor belt, the conveyor belt will smoothly transport the parcels to the static DWS workbench, the static DWS system to complete the parcel information collection work, automatically complete the weighing of the parcel, measuring the volume and sweeping the code of the work, and then transported to the labeling machine, real-time printing and labeling machine according to the reading of the product information generated and print a label and stick it on the parcel. Finally, the packages are automatically sorted and categorized according to the package information.

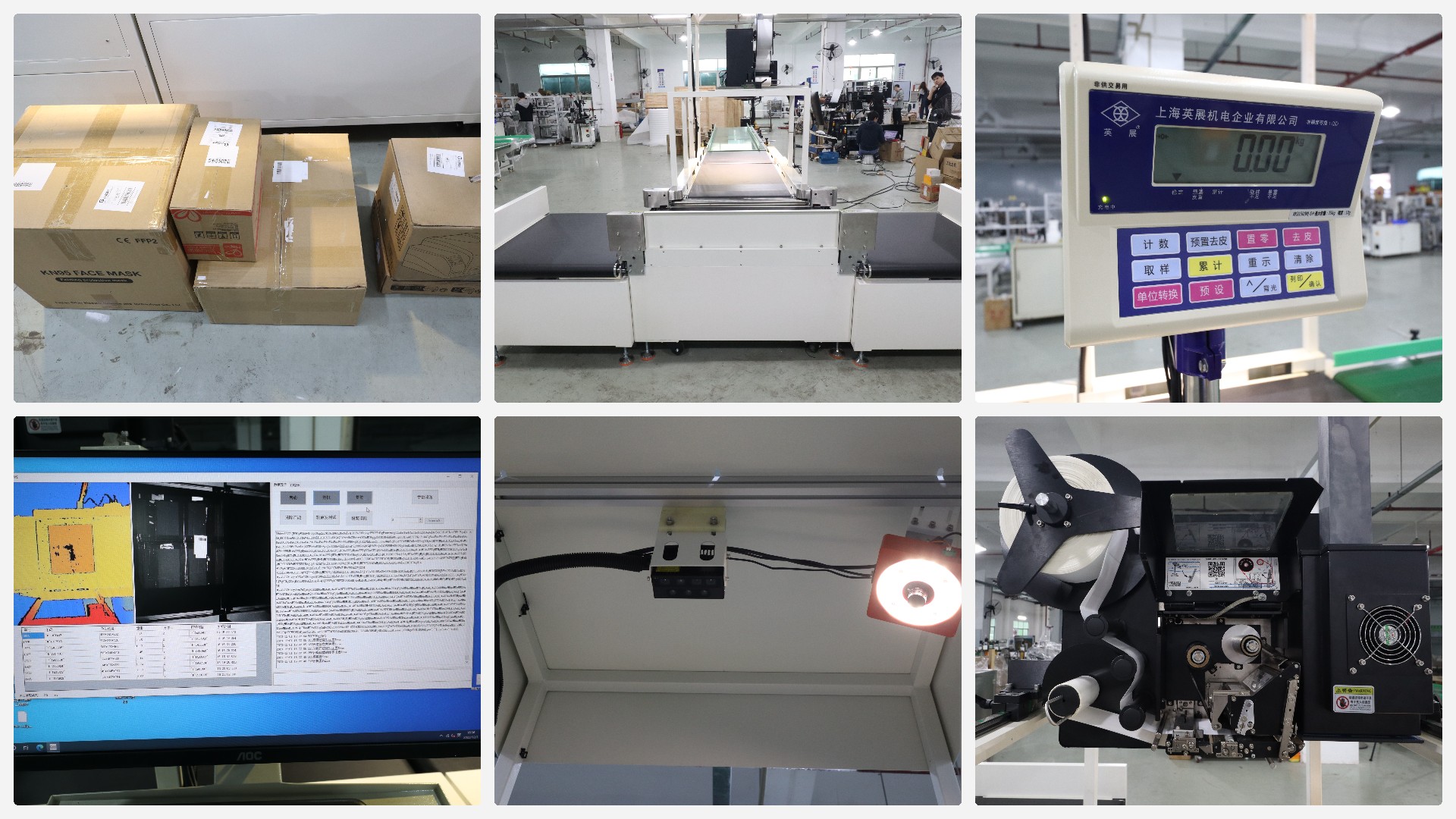

static dws with print apply system and sorter detail


Technical specifications

Labeling speed 400-500pcs/hour
Product size Max: 635*635*635mm, min: 152.4*152.4*76.2mm
Product weight Max weight 22.6kg, min weight 28g
Label size length: 30~100mm, width: 30~100mm (including back paper size)
Weighing accuracy ±20g
Measuring accuracy ±10mm
Item Brand
printer Zebra
labeler step motor leadshine
Conveyor motor Wanxin/Obang
PLC Wecon/xin Jie
Touch Screen Wecon/xin Jie
Sensor Omron/Panasonic/Schneider
