| Quantity: | |
|---|---|
GOSUNM

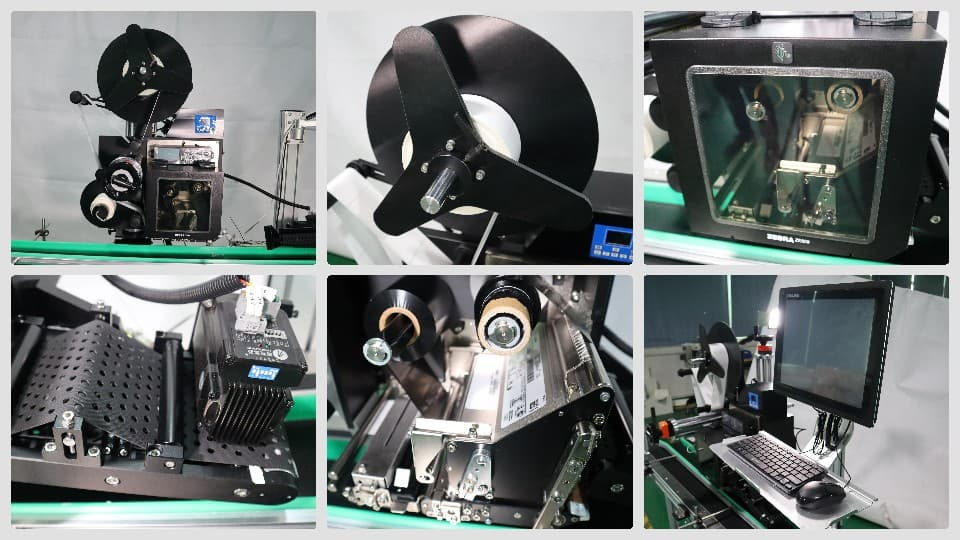

Product Show
| Model | GST-306 |
| Labeling accuracy | 2mm |
| Labeling speed | 5-40pcs/min (depends on the label size) |
| Label size | Length 30-250mm, width 30-100mm |
| Additional conveyor’s height | 700-800mm |
| Label roll diameter | Outer Max. 300mm, inner 76mm |
| Surrounding temperature | 10-40ℂ/td> |
| Surrounding humidity | 15-85% |
| Air supply | No need |
| Power Supply | AC220V, 50Hz, single phase |
| Machine dimension | 1600(L)*880(W)*1300(H)(mm) |
| Machine weight | 150kg |
| No. | Item | Brand | Origin | QTY |
| 1 | Label Winding Stepper motor & drive | Leadshine | China | 1 |
| 2 | Conveyor Speed regulator motor | Wanshsin | China | 1 |
| 3 | Real time Printer | Zebra ZE500-4 | USA | 1 |
| 4 | Photoelectric sensor for product | Panasonic/Riko | Japan/Taiwan | 1 |
| 5 | Photoelectric sensor for common label | Huayifeng/Leuze | China/Germany | 1 |
| 6 | Leakage power supply | Schneider | France | 1 |
| 7 | PLC | Xinje | China | 1 |
| 8 | HMI | Xinje | China | 1 |
| 9 | Rolling belt stepper motor&driver | Leadshine | China | 1 |
| 10 | IPC | Huajing/ | China | 1 |
| 11 | Screen | AOC | China | 1 |
| 12 | Stainless steel rack | Gosunm | China | 1 |

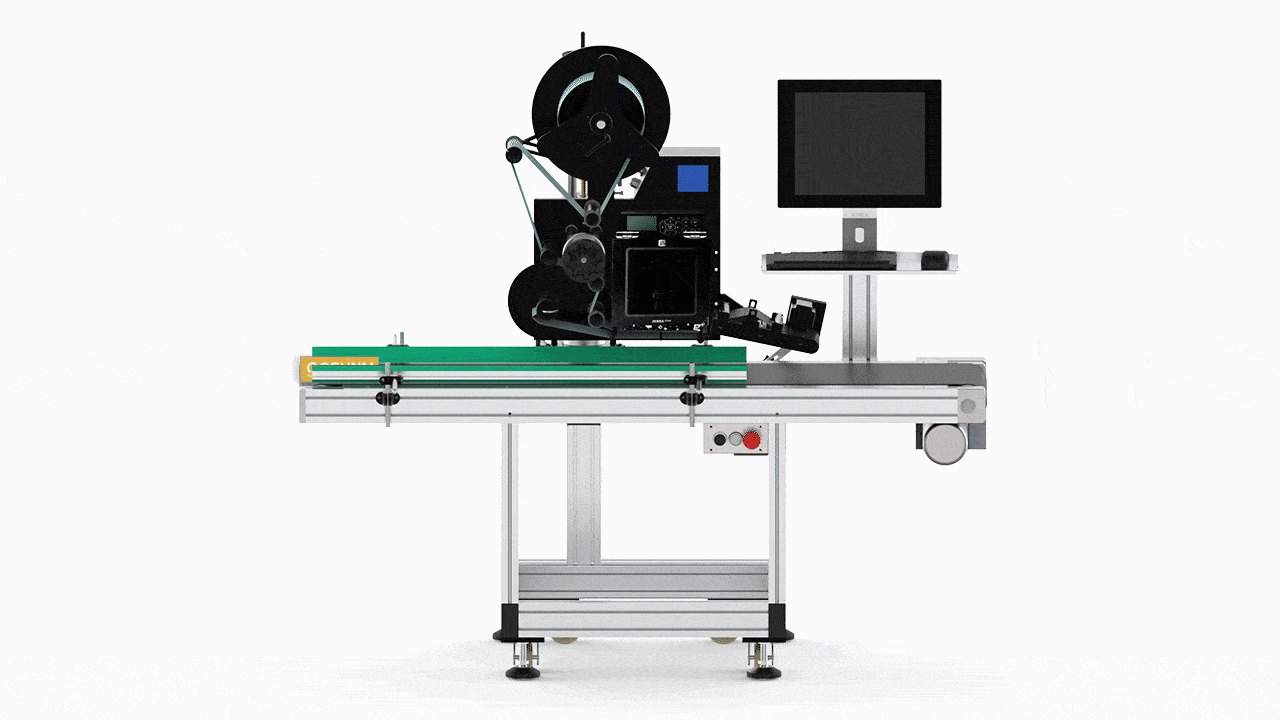

The roll-on printing and labeling machine consists of label applicator, printing engine, industrial control all-in-one machine and aluminum alloy frame. The roll-on printing and labeling machine is one of the most widely used and efficient in printing and applying labels. This equipment can quickly and on-demand print bar codes, 2D codes, shipping information or other information on the label, and then apply these labels one by one to the product. It is often used to label cartons, boxes, square drums, and other items with uniform specifications. After pressing the start button of the machine, the conveyor belt moves the product to the specified position, the object sensor detects the product and transmits the information to the industrial controller, which gives the instruction of labeling, and finally the label is wiped onto the surface of the product by the roller on the label applicator to complete the labeling work. The maximum label size is 205*100mm.
High labeling speed and accuracy
Easy debugging and operation, short time to change labels
Strong adaptability, can be adapted to a variety of different sizes of labels, different sizes of products
Adoption of industrial design program, equipment design and long service life
Good equipment performance, stable and reliable machine structure, can support a long period of continuous and stable operation
Why Choose US
Cost effective and easy to use | Gosunm Rolling Print & Apply Labeling Machine
Gosum's Rolling Print & Apply Labeling Machine is one of the most cost-effective print and apply labeling systems on the market and the most common way to print and apply labels. It is widely popular for its efficiency, reliability and ease of use.
Efficient speed: Compared to press and blow labeling, roll labeling is faster and can complete a large number of labeling tasks in a short period of time.
Easy startup: When changing to different label sizes, the start-up process of roll-on labeling is much simpler, saving your time and effort.
Dedicated applicator: Roll-on mode can only be applied to one product size at a time, ensuring labeling accuracy and consistency.
Flexible customization: If you need to label products of different heights, simply adjust the machine to accommodate different product requirements.
Suitable for consistent specifications: Roll-to-print labeling machines are more suitable for products with uniform specifications and can provide stable and efficient labeling services.
