GOSUNM
Product Show
| Model | GST-305 |
| Labeling accuracy | 2mm |
| Labeling speed | 5-40pcs/min (depends on the label size) |
| Label size | Length 30-250mm, width 30-100mm |
| Additional conveyor’s height | 700-800mm |
| Label roll diameter | Outer Max. 300mm, inner 76mm |
| Surrounding temperature | 10-40ℂ/td> |
| Surrounding humidity | 15-85% |
| Air supply | 200L/min, 0.6-0.8MPa |
| Power Supply | AC220V, 50Hz, single phase |
| Machine dimension | 1580(L)*850(W)*1460(H)(mm) |
| Machine weight | 150kg |
| No. | Item | Brand | Origin | QTY |
| 1 | Label Winding Stepper motor & drive | Leadshine | China | 1 |
| 2 | Conveyor Speed regulator motor | Wanshsin | China | 1 |
| 3 | Real time Printer | Zebra ZE500-4 | USA | 1 |
| 4 | Photoelectric sensor for product | Panasonic/Riko | Japan/Taiwan | 1 |
| 5 | Photoelectric sensor for common label | Huayifeng/Leuze | China/Germany | 1 |
| 6 | Leakage power supply | Schneider | France | 1 |
| 7 | PLC | Xinje | China | 1 |
| 8 | HMI | Xinje | China | 1 |
| 9 | Pneumatic cylinder | Airtac | China | 1 |
| 10 | IPC | Huajing/ | China | 1 |
| 11 | Screen | AOC | China | 1 |
| 12 | Stainless steel rack | Gosunm | China | 1 |

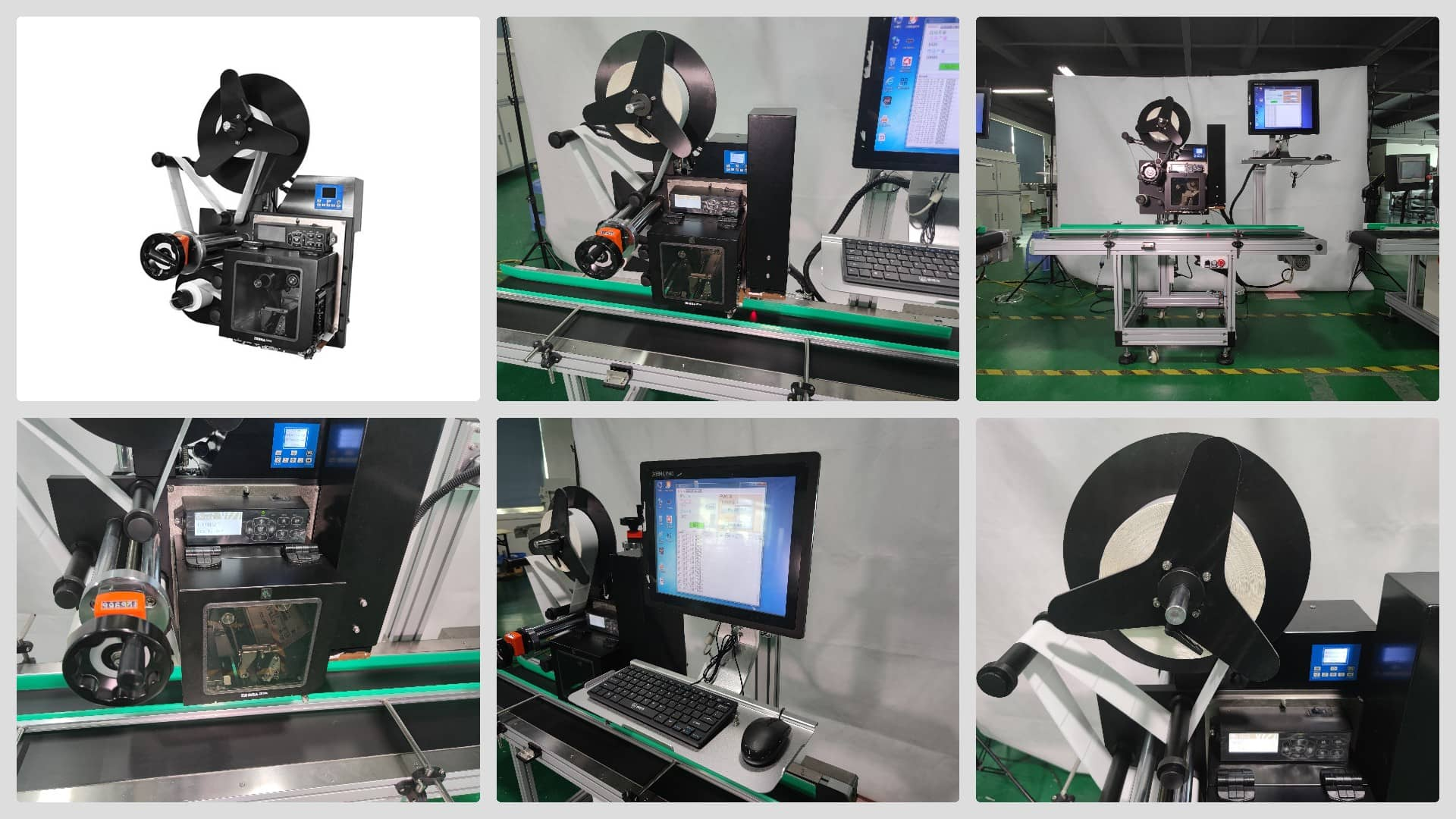

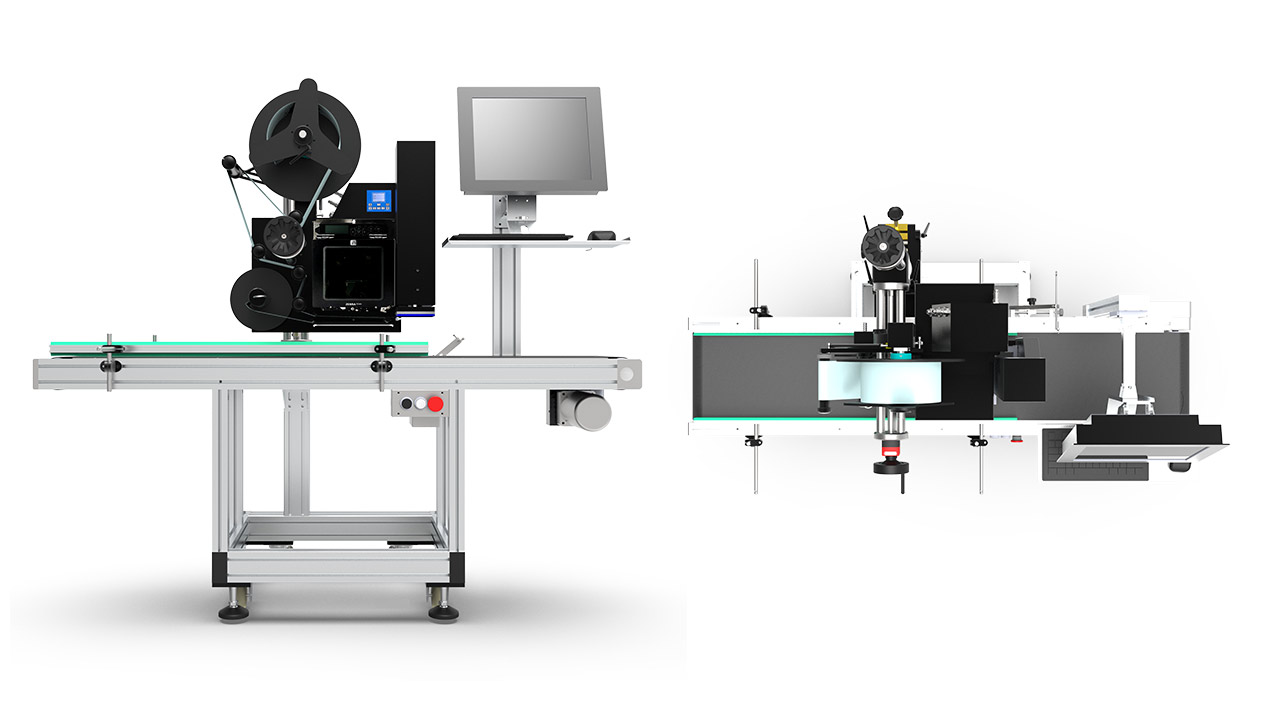

Press sticker printing and labeling machine consists of label applicator, printing engine, industrial control all-in-one machine and aluminum alloy frame. Press and stick printing and labeling machine is a kind of real-time printing and labeling machine, the label data in real time, can be from the database, scanning gun or DWS equipment. Through the printing engine and industrial control machine will print the label information to the blank label, and then through the mechanical arm of the printed label printing paste attached to the product, complete the labeling work. After pressing the start button of the machine, the conveyor belt moves the product to the designated position, the object sensor detects the product and transmits the information to the industrial control machine, which gives the labeling instruction, and finally the labeling work is completed by the mechanical arm on the label applicator. The maximum label size is 250*100mm.
Adaptive labeling of products of different heights within the prescribed stroke.
Can realize dynamic or static labeling at the same time
High labeling accuracy and good stability
Configuration of contact sensors at the end of the robot arm ensures that the product is not deformed by extrusion.
Adoption of industrial design program, equipment design and long service life
Good equipment performance, stable and reliable machine structure, can support a long time continuous and stable operation.
Why Choose US
Gosum's Press Print & Apply Labeler, also known as the Suction-Fit Print & Apply Labeler, is a state-of-the-art, real-time print and apply labeling system. It accurately applies labels to the surface of an object using a precision robotic arm, ensuring labeling accuracy and consistency.
Vacuum adsorption device: we fix the position of the label by the vacuum adsorption device of the robotic arm, which effectively ensures the accuracy of the labeling position.
Self-adaptive telescoping: The robotic arm has excellent telescoping performance and can automatically adapt to products of different heights within the set stroke to realize accurate labeling.
Static and dynamic labeling: Our equipment supports static and dynamic labeling, the goods stop labeling at the designated position is called static labeling, the goods are conveyed by the conveyor belt without stopping labeling is called dynamic labeling.
Contact sensors: The end of the robot arm is equipped with highly sensitive contact sensors to ensure that the product is not crushed during the labeling process and to protect the integrity of the product.
Multi-angle labeling: By simply adjusting the position of the labeling machine, you can easily achieve top, side, and bottom labeling, enhancing the aesthetics and practicality of your products.
