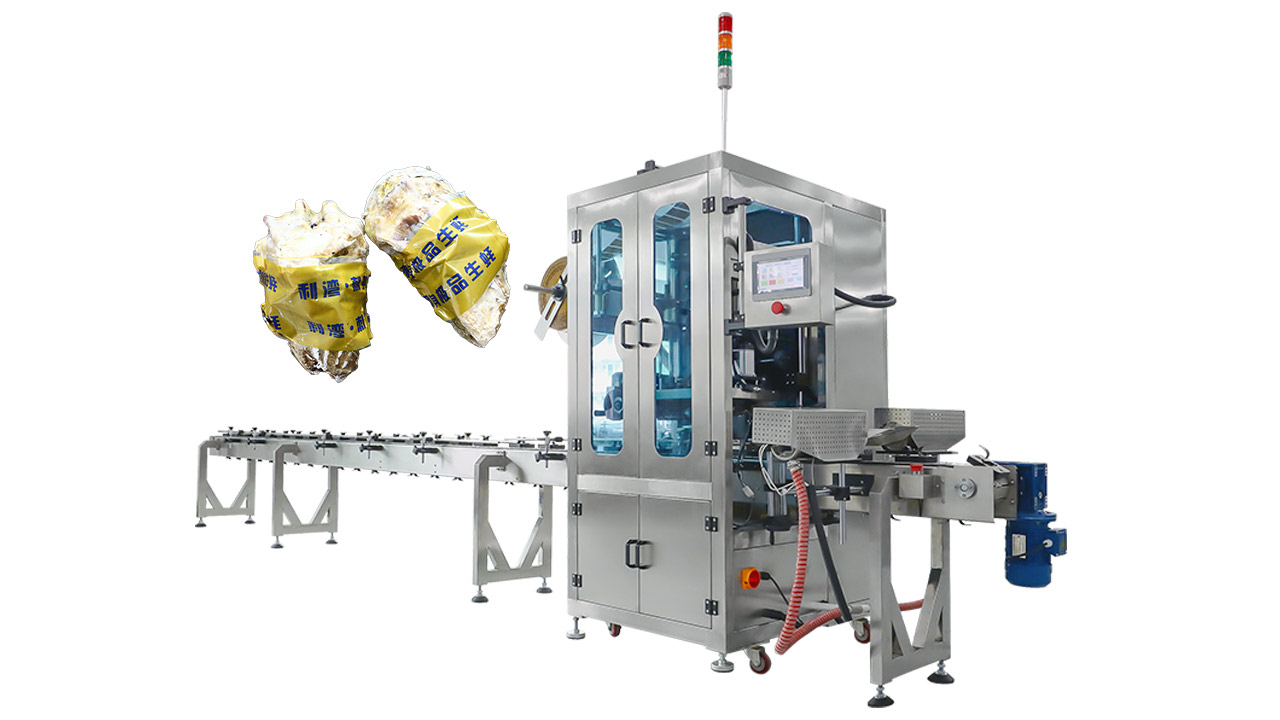

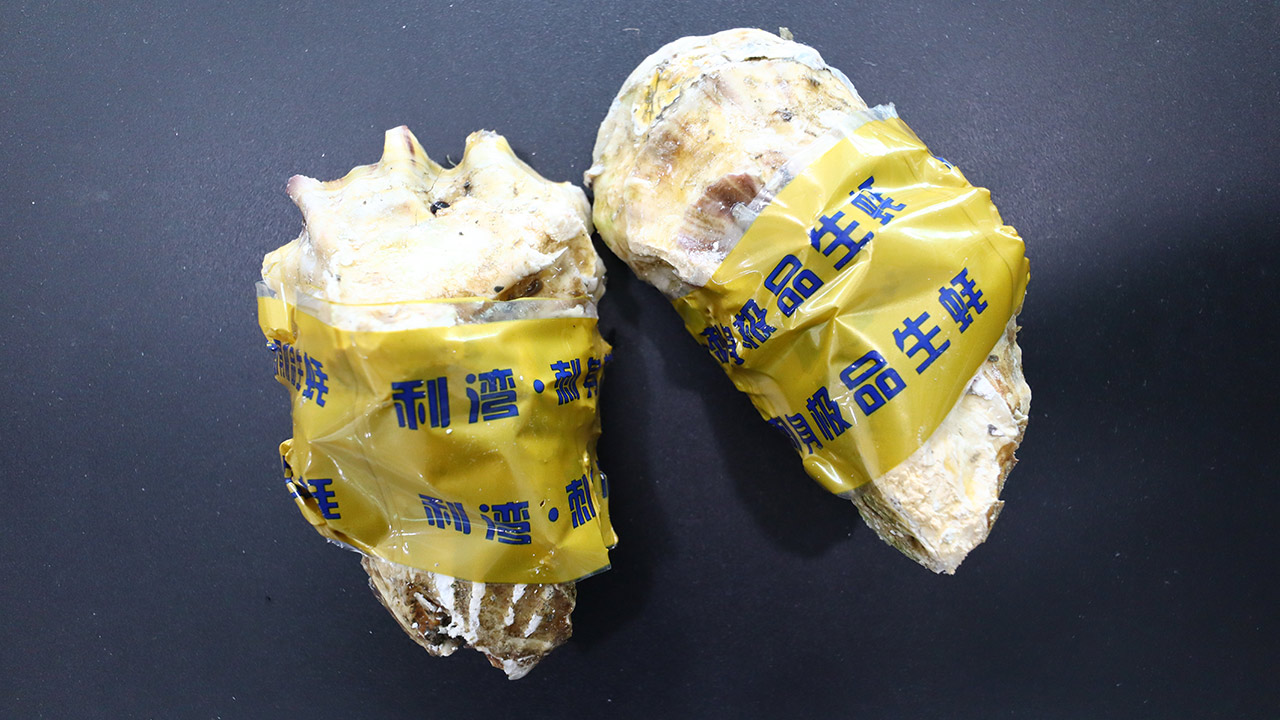

Oyster shrink sleeve labeling machine is a kind of equipment specially used for high-quality oyster sleeve labeling. It quickly attaches the shrink sleeve to the surface of the oyster by blowing hot air, and because the time of blowing hot air is very short, this process will not affect the quality of the oyster. The temperature and heating time of this equipment can be adjusted according to different types of oysters and labeling requirements.
This equipment has the characteristics of easy operation, high heat shrinking efficiency, can realize the appearance of different oysters sea oysters labeling shrinkage use, shrinkage effect is beautiful, the equipment is durable and stable.
| Quantity: | |
|---|---|
GOSUNM
Product Display
We are proud to introduce this shrink wrapper for the high-end oyster market, a professional packaging machine designed to provide optimum protection and presentation for valuable oysters. Using the latest hot air technology, the machine is capable of wrapping high quality shrink film tightly around the shell of each oyster in an instant, ensuring an efficient and accurate wrapping process. Most importantly, due to the extremely delicate design of our hot air system, it is exposed to the oysters for a very short period of time, ensuring that the wrapping process has no negative impact on the quality of the oysters, maintaining their natural freshness and flavour.
In addition, the machine's heating temperature and duration are adjustable, allowing it to be adapted to the specific needs of different types of oysters and different types of labelling requirements. This customisation allows for optimal shrinkage of each batch, regardless of variations in oyster size and shape or special labelling requirements.
In terms of operation, special emphasis has been placed on user-friendliness, with an intuitive operator interface that makes it easy for even inexperienced operators to get to grips with the machine, reducing training costs and operational errors. At the same time, the efficient shrink performance not only increases labour efficiency, but also means higher production throughput.
The versatility of the machine is demonstrated by its ability to enhance the appearance of labels on a wide range of oysters and sea oysters, with suitable packaging solutions for both traditional and speciality varieties. Ultimately, the aesthetically pleasing shrink effect not only enhances the product's market appeal, but also the consumer's desire to buy.
In terms of equipment durability and stability, we have taken a number of measures to ensure long-term stable operation. In the long run, this not only reduces maintenance costs, but also ensures maximum return on investment. Choosing our shrink sleeve labeller for oysters is choosing a comprehensive guarantee of quality, efficiency and reliability.
| Product Name | Full-Auto Shrink Sleeve Labeling Machine with Electric Heater Shrinking Tunnel |
| Model | GST-250E |
| Labeling speed | 30-200pcs/min (depends on the label size) |
| Shrunk label accuracy | 2.5mm(depends on product size and the label thickness) |
| Conveyor’s height | 800mm |
| Product size | Diameter φ20-100mm, height 50-280mm |
| Label size | Diameter φ20-110mm, length 50-280mm |
| Distance between nearby labels | 3-5mm0.2mm |
| Label thickness | 0.03-0.06mm |
| Label material | PVC/PET |
| Label roll diameter | Outer Max.450mm, inner 76mm |
| Surrounding temperature | 10-40ℂ/span> |
| Surrounding humidity | 15-85% |
| Power | 12kW |
| Power Supply | Labeling Unit: AC220V, 50/60Hz, single phase; |
| Shrinking Tunnel | AC380V, 50/60Hz, 3 phase |
| Air supply | No need |
| Machine dimension | 5875(L)*1100(W)*2000(H)(mm) |
| Machine weight | 1100kg |
| No. | Item | Brand | Origin | QTY |
| 1 | Film rewinding inverter motor | Wanshsin | China | 1 |
| 2 | Film pulling servo motor | Xinje | China | 1 |
| 3 | Film Cutter servo motor | Xinje | China | 1 |
| 4 | Film sleeving inverter motor | Wanshsin | China | 1 |
| 5 | Film platform up&down inverter motor | Wanshsin | China | 1 |
| 6 | Conveyor motor | Wanshsin | China | 1 |
| 7 | leakage circuit breaker | Chint/Schneider | Japan/France | 1 |
| 8 | Label film photoelectric sensors | Sick | Germany | 1 |
| 9 | Product photoelectric sensor | Panasonic/Sick | Japan/ Germany | 1 |
| 10 | PLC | Mitsubishi | Japan | 1 |
| 11 | Touch screen | WECON | China | 1 |
| 12 | Power switch | MEANWELL | China | 1 |
NOTE: the configuration may be adjusted reasonably according to the actual material delivery time, and the configuration can be revised according to customer needs
Efficient and stable: Excellent industrial design, selecting high-quality stainless steel and aluminum profiles, capable of continuous and stable operation.
Stability: Adopting excellent industrial design, the body is made of high quality stainless steel and aluminum profiles, which ensures that the machine can work continuously and stably for a long time.
Accurate labeling: can accurately attach the label to the surface of the oyster, improve the aesthetics and quality of the product.
Wide range of application: applicable to oysters of different sizes and shapes, and the equipment can be flexibly adjusted to adapt to oysters of different sizes.
Convenient maintenance: Adoption of standardized mechanical and electrical components, easy and quick maintenance and service.
