Full-Auto Shrink Sleeve Labeling Machine with Steam Shrinking Tunnel 24,000BPH

The steam sleeve labeling machine is a label covering device specially used for various containers, such as bottles and cans, and is widely used in the food, beverage and daily chemical industries. The core of the steam sleeve labeling machine lies in its steam heating system, which uses high-temperature steam to shrink the label material so that it fits tightly on the surface of containers of various shapes, especially those with complex curves or corners.
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • Gosunm

Product Description

The steam sleeve labeling machine is a label covering device specially designed for various containers, such as bottles and cans, and is widely used in the food, beverage and daily chemical industries. The core of the steam sleeve labeling machine lies in its steam heating system, which uses high-temperature steam to shrink the label material so that it fits tightly on the surface of containers of various shapes, especially those with complex curves or corners.


The sleeve labeling process begins with the pre-made label sleeve being placed on the container. Subsequently, the label is evenly heated by precisely controlling the steam jet. Finally, the label is closely attached to the container label to form a smooth and seamless covering effect.


shrink sleeve label machine




Technical Parameters

Model GST-400P
Production capacity �4000BPH(Elevation�0 mm)
Standard pass rate �9.9%
Whole line production efficiency �5% (based on 24 hours)
Bottle diameter 50mm ï½ 95mm, Special sizes can be customised
The bottle height 30 mm -280 mm, Special sizes can be customised
Verticality of bottle �. 0°
Applicable label PVC, PET, OPS
Label length 30mm ï½?50mm
Tagged thickness 0.027mm ï½?.13mm
Tagged material PVC, PET, OPS
Label transparent spacing �mm
Roll mark paper core inner diameter �"(76mm)
Volume mark outer diameter �00mm
voltage 220V
Kit standard machine power 3.5KW

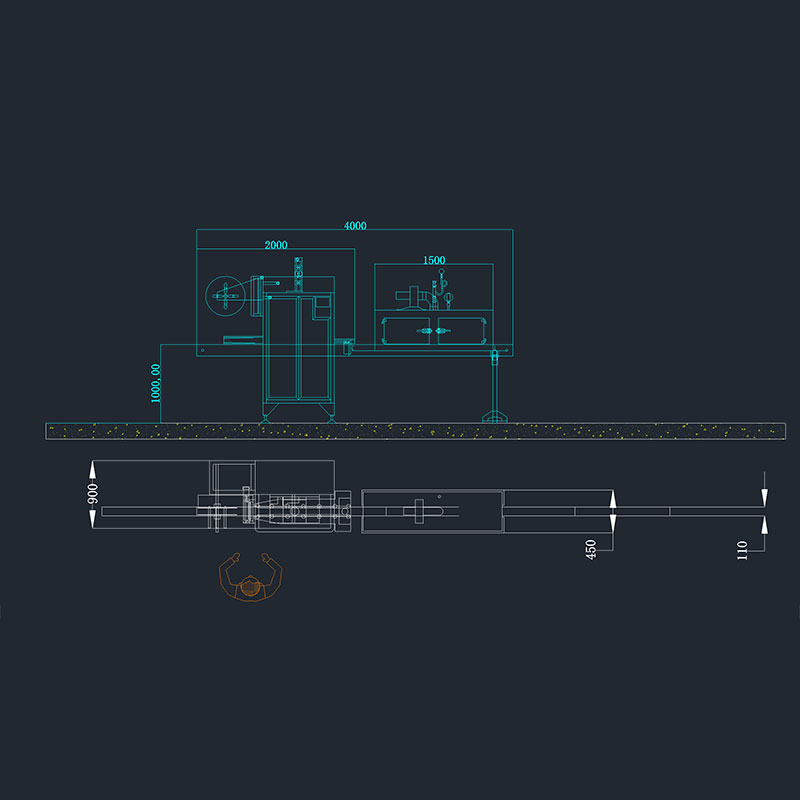

Machine size 4000X1050X2000 (L×W×H) reference
The weight of the machine 300 kg


Equipment Configuration


The 200P standard configuration list



Item name Electrical name model Qty Brand Origin
Machine lift group Low-power AC motor 5IK90GU-CF-25KB 1 SEW Germany
Brush unit Low-power AC motor 5IK120A-CF 1 SEW Germany
Supply group Low-power AC motor 5IK120GN-SF-5GN5K 1 SEW Germany
frequency transformer MD200S0.75B 1 INOVACE China
Photoelectric sensor GTB6-N1212 1 SICK Japan
Conveying bottle unit Low-power AC motor 5IK90GN-SF-5GN7.5K 1 SEW Germany
frequency transformer MD200S0.75B 1 INOVACE China
Bottle feeding group Low-power AC motor 5IK90GN-SF-5GN5K 1 SEW Germany
frequency transformer MD200S0.75B 1 INOVACE China
Brushing group Low-power AC motor 4IK25GN-C-4GN3K 2 SEW Germany
Knife plate group The cutter head servo motor MD200S0.75B 1 INOVACE China
The pan servo drive MD200S0.75B 1 INOVACE China
Miniature photosensors PM-L45 1 Panasonic Japan
Drive group Drive servo motor MD200S0.75B 1 INOVACE China
Drive the servo drive MD200S0.75B 1 INOVACE China
Electric eye frame group High-speed optical fiber optic sensor WLL170-2N132 1 SICK Japan
Bottle tracking group Photoelectric sensor WL100-2N1429 1 SICK Japan
Conveying group converter MD200S0.75B 1 INOVACE China
Electrical Cabinet
1 PLC 6ES7288-1ST40-0AA0 1 Panasonnic Japan
2 touch screen 6AV6648-0CC11-3AX0 1 WEINVIEW China
3 Power Supply MW-220-150-24 1 Meanwell Germany
4 contactor D1810 32A 1 Schneider France
5 auxiliary relay 10A 8

6 fuse 10A 4

7 potential device 0ï¼?0V 3

8 scram button
1

9 Two choice switch
1

10 Indicator button
2

NOTE: the configuration may be adjusted reasonably according to the actual material delivery time, and the configuration can be revised according to customer needs



Featureds

†Adopt international famous electric components, PLC control, friendly interface, with convenient and

rapid setting of parameters.

†Bottles conveying, separating with adjustment, sensor, label shrinking and complete the whole

process with high accuracy and fast speed.

†Shrinking with high positioning accuracy, stability, shrinking labeling smooth, not wrinkled, no bubbles.

†Can be widely suited for round /square/oval/flat/rectangle/irregular containers

•Beautiful appearance, curved glass door design for easy operation

•Replacement of the blade is convenient, it is recommended to use a hobby knife, cheap and efficient

•Can provide film for free test

•Fast delivery (non-customised machine delivery within 10 days)

•Non-frequently disassembled screws are played with screw adhesive, fixed and reliable


sleeving machine

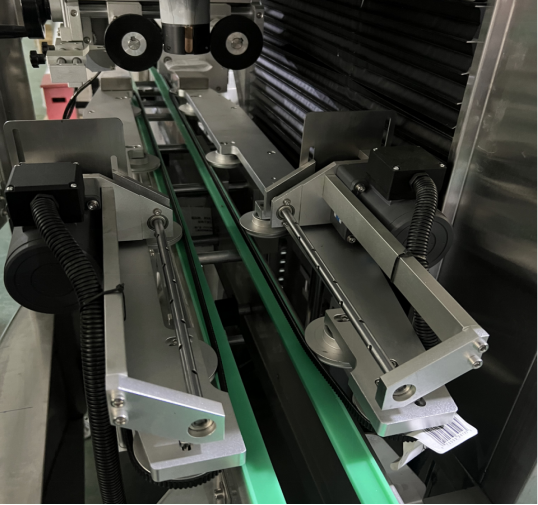

High-grade brushes, do not hurt the labels, o not shed hairs

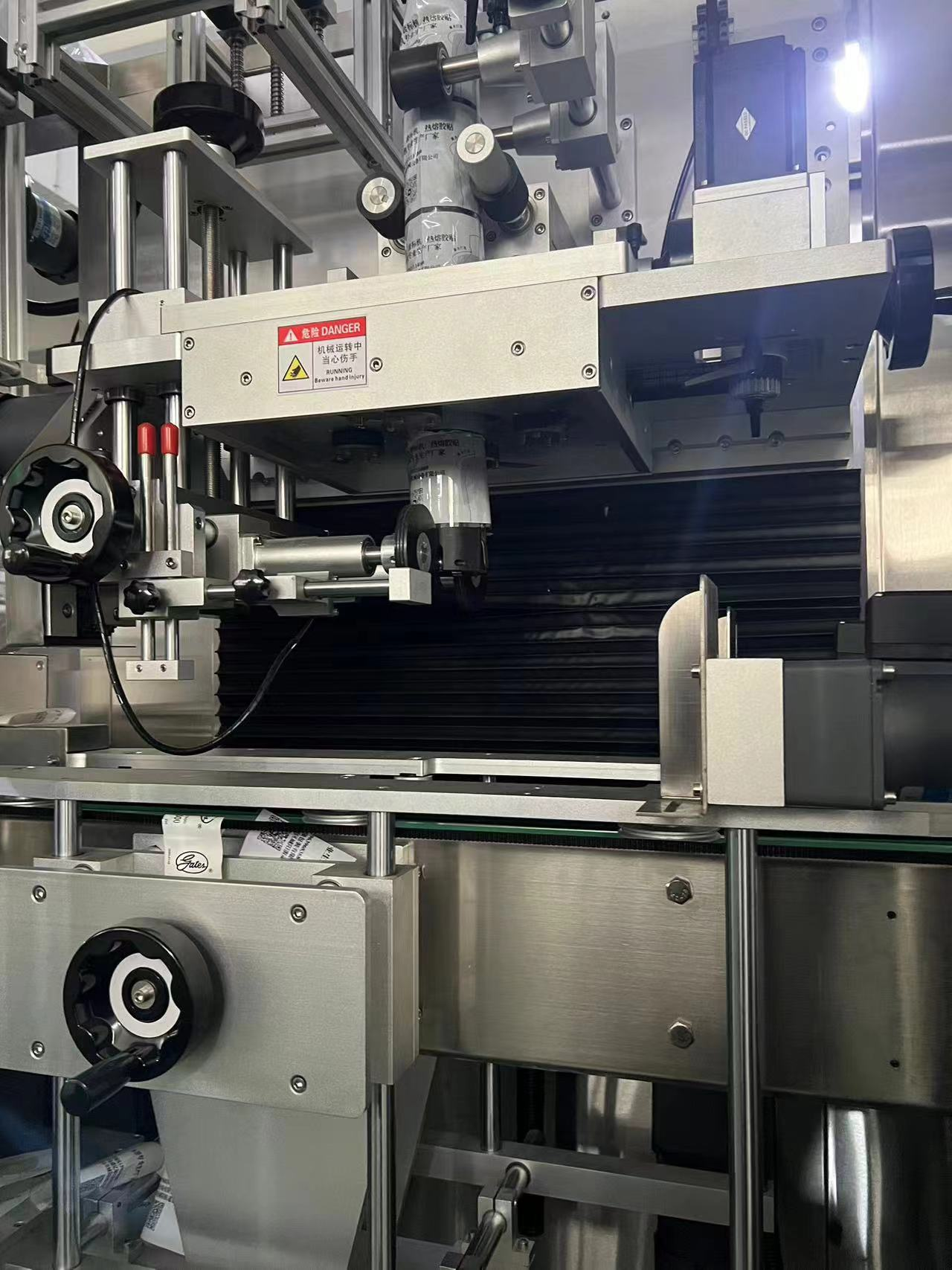

shrink sleeve equipment
shrink sleeve labeler

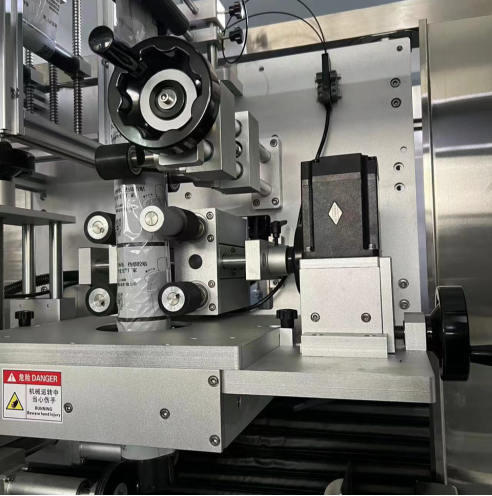

Precision-machined design of the central axis, accurate positioning of the sleeve marking, no offset
