Product Description

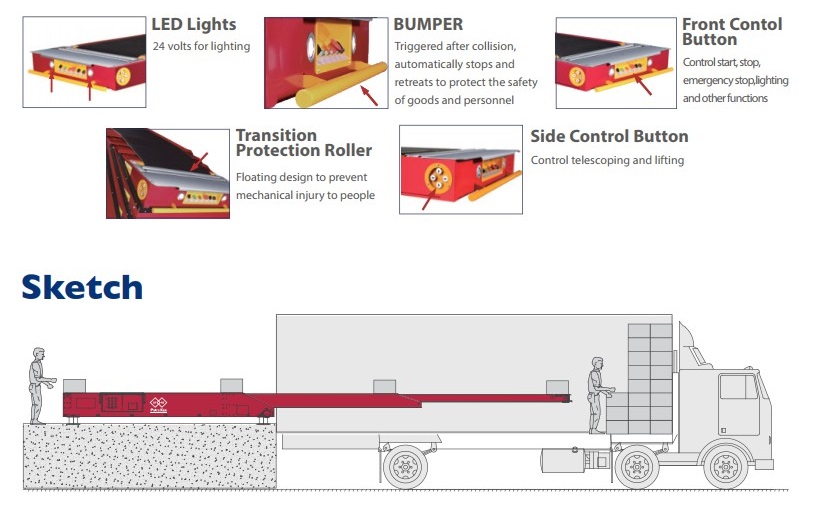

The Fixed Telescopic Belt Conveyor is a highly efficient and flexible material handling device that can be extended and retracted longitudinally to control the length of the conveyor at any time. It can convey materials in both directions, and the operator end can be raised and lowered, so it can be used in conjunction with other conveyors and material sorting systems to realize automated production of materials in and out of warehouses or vehicle loading and unloading. This equipment can significantly reduce the intensity of cargo loading and unloading and save handling time. The core feature of this model is its telescoping capability, which can freely expand and contract in the longitudinal direction, which is suitable for more complex environments, and the small size of the equipment makes it more suitable for small and medium-sized warehouses and production halls. Fixed Type Telescopic Belt Conveyor is widely used in industries that require large quantities of materials to be handled, such as mines, harbors, and logistics centers.
Fixed Type Telescoplc Belt Conveyor | |||||
Type | Section Number | Fixed Length | Extended Length | Total Length | Belt Width |
SQ-B-2-4/3-G | 2 | 4000 | 3000 | 7000 | 600/800 |
SQ-A-3-5/7-G | 3 | 5000 | 7000 | 12000 | 600/800 |
SQ-A-3-6/8.6-G | 3 | 6000 | 8600 | 14600 | 600/800 |
SQ-XA-4-5/10-G | 4 | 5000 | 10000 | 15000 | 600/800 |
SQ-XA-4-6/12.6-G | 4 | 6000 | 12600 | 18600 | 600/800 |
SQ-XA-4-7/14.6-G | 4 | 7000 | 14600 | 21600 | 600/800 |
SQ-B-4-7.5/16-G | 4 | 7500 | 16000 | 23500 | 600/800 |
SQ-B-4-8/17-G | 4 | 8000 | 17000 | 25000 | 600/800 |
SQ-XB-5-6/16-G | 5 | 6000 | 16000 | 22000 | 600/800 |
SQ-XB-5-7/19-G | 5 | 7000 | 19000 | 26000 | 600/800 |
SQ-XB-5-7.5/21-G | 5 | 7500 | 21000 | 28500 | 600/800 |
SQ-XB-6-6/20-G | 6 | 6000 | 20000 | 26000 | 600/800 |
Note: The above specification are commonly used by Gosunm Company. If you need other specification, please contact our business department

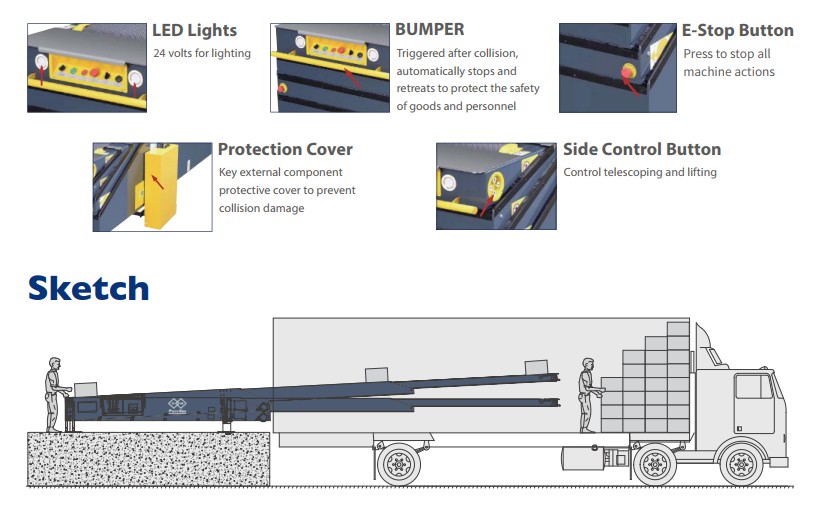

The lift type telescopic belt conveyor not only has the telescopic characteristics of the traditional telescopic belt conveyor, but also adds vertical lifting and lowering functions, which greatly expands its application range and efficiency. The model can be adjusted in length and height, the telescopic part is driven by the built-in motor, which can adjust the telescopic length according to the operational requirements, while the lifting function is realized by hydraulic cylinder or electric lifting mechanism, the combination of which makes the equipment flexible to cope with various loading and unloading environments.
Lift Type Telescopic Belt Conveyor | ||||||
Type | Section Number | Fixed Length | Extended Length | Total Length | Belt Width | Lifting Angle |
SQ-B-2-4/3-S | 2 | 4000 | 3000 | 7000 | 600/800 | 0-3 |
SQ-A-3-5/7-S | 3 | 5000 | 7000 | 12000 | 600/800 | 0-3 |
SQ-A-3-6/8.6-S | 3 | 6000 | 8600 | 14600 | 600/800 | 0-3 |
SQ-XA-4-5/10-S | 4 | 5000 | 10000 | 15000 | 600/800 | 0-3 |
SQ-XA-4-6/12.6-S | 4 | 6000 | 12600 | 18600 | 600/800 | 0-3 |
SQ-XA-4-7/14.6-S | 4 | 7000 | 14600 | 21600 | 600/800 | 0-3 |
SQ-B-4-7.5/16-S | 4 | 7500 | 16000 | 23500 | 600/800 | 0-3 |
SQ-B-4-8/17-S | 4 | 8000 | 17000 | 25000 | 600/800 | 0-3 |
SQ-XB-5-6/16-S | 5 | 6000 | 16000 | 22000 | 600/800 | 0-3 |
SQ-XB-5-7/19-S | 5 | 7000 | 19000 | 26000 | 600/800 | 0-3 |
SQ-XB-5-7.5/21-S | 5 | 7500 | 21000 | 28500 | 600/800 | 0-3 |
SQ-XB-6-6/20-S | 6 | 6000 | 20000 | 26000 | 600/800 | 0-3 |
Movable type telescopic chain conveyor is especially suitable for applications where the working position needs to be changed frequently. This equipment not only integrates the basic functions of fixed type telescopic belt conveyor, but also can move freely, which greatly improves its application range and convenience.Movable type telescopic belt conveyor mainly consists of body, telescopic mechanism, mobile base and control system. The body is usually made of light and high-strength materials to facilitate movement and stable operation. It is widely used in warehouses, logistics distribution centers, small terminals and other places where flexible configuration of conveyor equipment is required. Especially in environments where space is limited or quick adjustment of the operation site is required, mobile telescopic belt conveyors show unique advantages.
Movable type telescopic belt conveyor | |||||
Type | Section Number | Fixed Length | Extended Length | Total Length | Belt Width |
SQ-B-2-4/3-Y | 2 | 4000 | 3000 | 7000 | 600/800 |
SQ-A-3-5/7-Y | 2 | 5000 | 7000 | 12000 | 600/800 |
SQ-A-3-6/8.6-Y | 3 | 6000 | 8600 | 14600 | 600/800 |
SQ-XA-4-5/10-Y | 4 | 5000 | 10000 | 15000 | 600/800 |
SQ-XA-4-6/12.6-Y | 4 | 6000 | 12600 | 18600 | 600/800 |
SQ-XA-4-71/4.6-Y | 4 | 7000 | 14600 | 21600 | 600/800 |
SQ-B-4-7.5/16-Y | 4 | 7500 | 16000 | 23500 | 600/800 |
SQ-B-4-8/17-Y | 4 | 8000 | 17000 | 25000 | 600/800 |
SQ-XB-5-6/16-Y | 5 | 6000 | 16000 | 22000 | 600/800 |
SQ-XB-5-7/19-Y | 5 | 7000 | 19000 | 26000 | 600/800 |
SQ-XB-5-7.5/21-Y | 5 | 7500 | 21000 | 28500 | 600/800 |
SQ-XB-6-6/20-Y | 6 | 6000 | 20000 | 26000 | 600/800 |
Rail Type Telescopic Belt Conveyor
The rail type telescopic belt conveyor is usually installed on a fixed rail, which allows the whole equipment to move freely in the horizontal space, while the longitudinal position remains unchanged, facilitating quick docking with other logistics equipment, and is especially suitable for loading and unloading goods in express transit warehouses. With its advanced design and flexible operation, the track-type telescopic belt conveyor provides an efficient and reliable solution for modern logistics and warehouse management. It not only enhances operational efficiency, but also brings significant economic benefits and social value to companies by reducing labor intensity requirements and improving the working environment.
Rail Type Telescopic Belt Conveyor | |||||
Type | Section Number | Fixed Length | Extended Length | Total Length | Belt Width |
SQ-B-2-4/3-Y | 2 | 4000 | 3000 | 7000 | 600/800 |
SQ-A-3-5/7-Y | 3 | 5000 | 7000 | 12000 | 600/800 |
SQ-A-3-6/8.6-Y | 3 | 6000 | 8600 | 14600 | 600/800 |
SQ-XA-4-5/10-Y | 4 | 5000 | 10000 | 15000 | 600/800 |
SQ-XA-4-6/12.6-Y | 4 | 6000 | 12600 | 18600 | 600/800 |
SQ-XA-4-7/14.6-Y | 4 | 7000 | 14600 | 21600 | 600/800 |
SQ-B-4-7.5/16-Y | 4 | 7500 | 16000 | 23500 | 600/800 |
SQ-B-4-8/17-Y | 4 | 8000 | 17000 | 25000 | 600/800 |
SQ-XB-5-6/16-Y | 5 | 6000 | 16000 | 22000 | 600/800 |
SQ-XB-5-7/19-Y | 5 | 7000 | 19000 | 26000 | 600/800 |
SQ-XB-5-7.5/21-Y | 5 | 7500 | 21000 | 28500 | 600/800 |
SQ-XB-6-6/20-Y | 6 | 6000 | 20000 | 26000 | 600/800 |

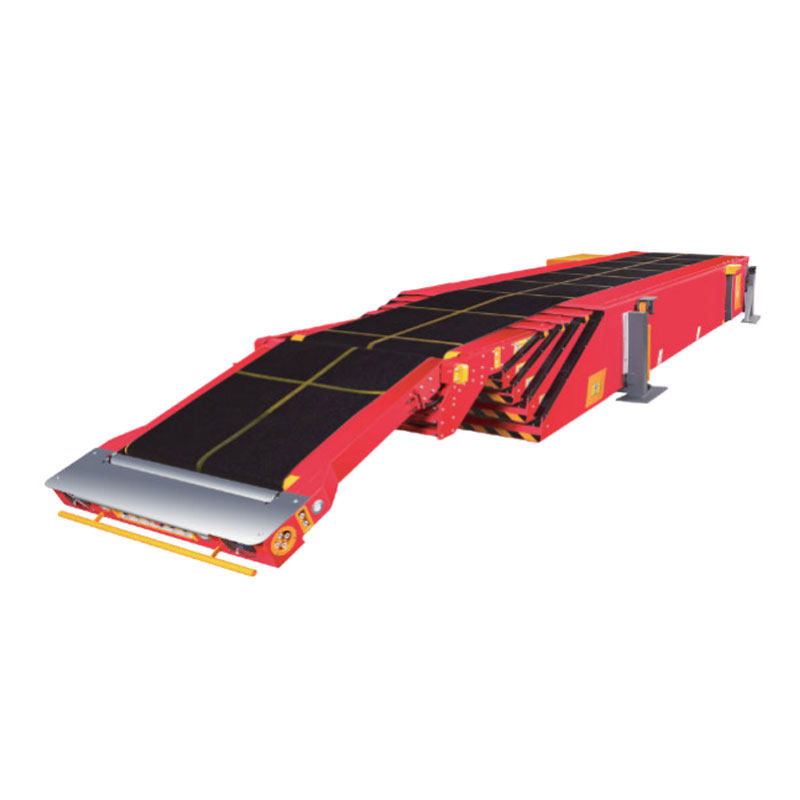

Droop Snoot Type Telescopic Belt Conveyor is a small belt conveyor with adjustable angle at the front end of Telescopic Belt Conveyor, which can be adjusted to avoid repeated bending work of workers, effectively reduce the labor intensity of loading and unloading goods, and is more suitable for loading and unloading heavy parcels. It is widely used in logistics, express delivery, port, railway station and other places that require large amount of material handling. Especially in the scenario where the loading and unloading height and angle need to be adjusted frequently, this model shows its unique advantages.
Droop Snoot Type Telescopic Belt Conveyor | |||||||
Type | Section Number | Fixed Length | Extended Length | Total Length | Belt Width | Swing Arm Length | Swing Arm Angle |
SQ-B-2-4/3-YB | 2 | 4000 | 3000 | 7000 | 600/800 | 1500 | -25/+85 |
SQ-A-3-5/7-YB | 3 | 5000 | 7000 | 12000 | 600/800 | 1500 | -25/+85 |
SQ-A-3-6/8.6-YB | 3 | 6000 | 8600 | 14600 | 600/800 | 1500 | -25/+85 |
SQ-XA-4-5/10-YB | 4 | 5000 | 10000 | 15000 | 600/800 | 1500 | -25/+85 |
SQ-XA-4-6/12.6-YB | 4 | 6000 | 12600 | 18600 | 600/800 | 1500 | -25/+85 |
SQ-XA-4-7114.6-YB | 4 | 7000 | 14600 | 21600 | 600/800 | 1500 | -25/+85 |
SQ-B-4-7.5/16-YB | 4 | 7500 | 16000 | 23500 | 600/800 | 1500 | -25/+85 |
SQ-B-4-8/17-YB | 4 | 8000 | 17000 | 25000 | 600/800 | 1500 | -25/+85 |
SQ-XB-5-6/16-YB | 5 | 6000 | 16000 | 22000 | 600/800 | 1500 | -25/+85 |
SQ-XB-5-7/19-YB | 5 | 7000 | 19000 | 26000 | 600/800 | 1500 | -25/+85 |
SQ-XB-5-7.5/21-YB | 5 | 7500 | 21000 | 28500 | 600/800 | 1500 | -25/+85 |
SQ-XB-6-6/20-YB | 6 | 6000 | 20000 | 26000 | 600/800 | 1500 | -25/+85 |

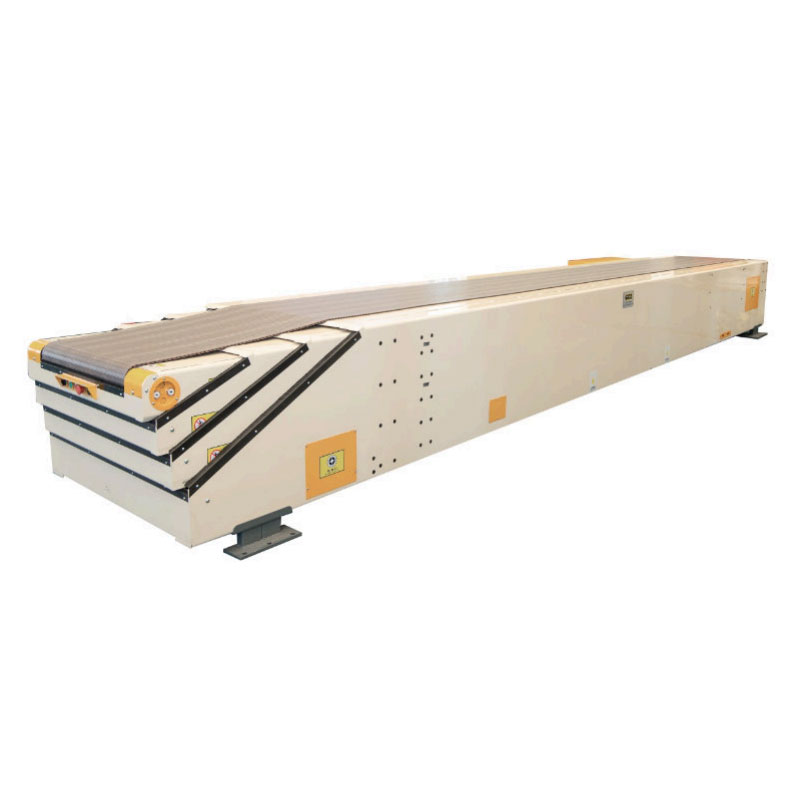

Module Belt Telescopic Conveyor
Unlike traditional belt type telescopic conveyors, this equipment is a new type of telescopic conveyor that uses plastic module belts as the conveying medium. It has strong load-bearing capacity, impact resistance, and wide applicability for goods. It is mainly used for the transportation of tobacco, food, beverages, meat products, etc. It can also be used to transport larger or heavier goods. The module belt will not deviate during transportation and is easy to replace, and can be washed with water.
Module Belt Telescopic Conveyor | |||||
Type | Section Number | Fixed Length | Extended Length | Total Length | Belt Width |
SQ-B-2-4/3-MM | 2 | 4000 | 3000 | 7000 | 600/800 |
SQ-A-3-5/7-M | 3 | 5000 | 7000 | 12000 | 600/800 |
SQ-A-3-6/8.6-MM | 3 | 6000 | 8600 | 14600 | 600/800 |
SQ-XA-4-5/10-M | 4 | 5000 | 10000 | 15000 | 600/800 |
SQ-XA-4-6/12.6-M | 4 | 6000 | 12600 | 18600 | 600/800 |
SQ-XA-4-7/14.6-M | 4 | 7000 | 14600 | 21600 | 600/800 |
SQ-B-4-7.5/16-M | 4 | 7500 | 16000 | 23500 | 600/800 |
SQ-B-4-8/17-M | 4 | 8000 | 17000 | 25000 | 600/800 |
SQ-XB-5-6/16-M | 5 | 6000 | 16000 | 22000 | 600/800 |
SQ-XB-5-7/19-M | 5 | 7000 | 19000 | 26000 | 600/800 |
SQ-XB-5-7.5/21-M | 5 | 7500 | 21000 | 28500 | 600/800 |
S0-XB-6-6/20-MM | 6 | 6000 | 20000 | 26000 | 600/800 |

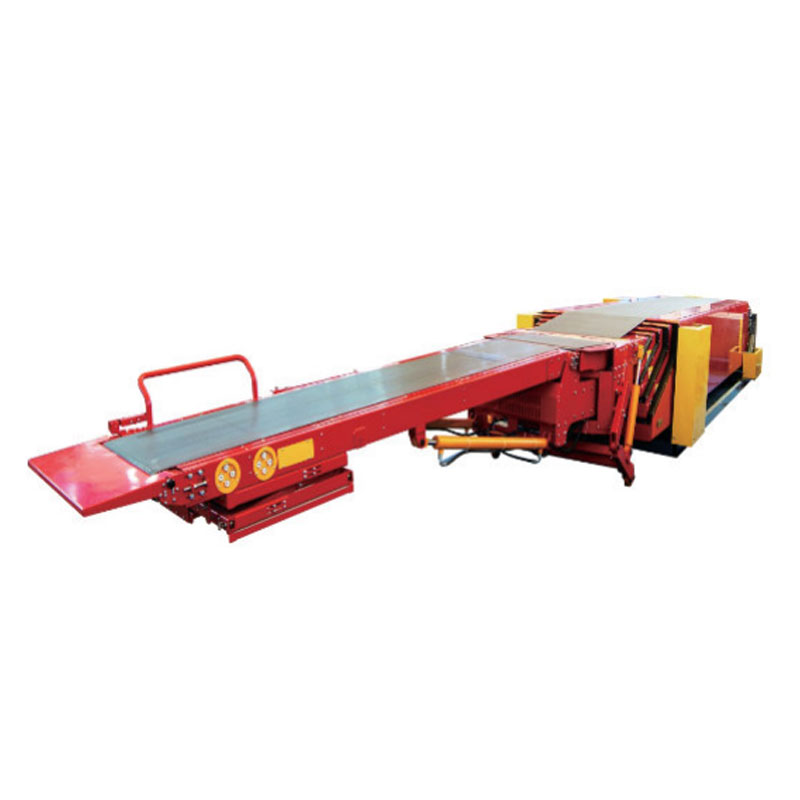

This equipment has added a semi- automatic loading and unloading conveying section on the basis of a regular telescopic machine. By controlling the up, down, left, and right swing of the conveying section through a hydraulic displacement mechanism, goods can be transported to any corner of the carriage, which is conducive to improving loading and unloading efficiency and saving manpower. It is widely used in e-commerce, express delivery, factories, ports, airports, warehousing and other occasions.
Semi Automatic Telescopic Belt Conveyor | |||||||
Type | Section Number | Fixed Length | Extended Length | Total Length | Belt Width | Swing Arm Length | Swing Arm Angle |
SQ-B-2-4/3-YB | 2 | 4000 | 3000 | 7000 | 600/800 | 3000 | up/down: -8/+17, left/right: -15/+15 |
SQ-A-3-5/7-YB | 3 | 5000 | 7000 | 12000 | 600/800 | 3000 | up/down: -8/+17, left/right: -15/+15 |
SQ-A-3-6/8.6-YB | 3 | 6000 | 8600 | 14600 | 600/800 | 3000 | up/down: -8/+17, left/right: -15/+15 |
SQ-XA-4-5/10-YB | 4 | 5000 | 10000 | 15000 | 600/800 | 3000 | up/down: -8/+17, left/right: -15/+15 |
SQ-XA-4-6/12.6-YB | 4 | 6000 | 12600 | 18600 | 600/800 | 3000 | up/down: -8/+17, left/right: -15/+15 |
SQ-XA-4-7114.6-YB | 4 | 7000 | 14600 | 21600 | 600/800 | 3000 | up/down: -8/+17, left/right: -15/+15 |
SQ-B-4-7.5/16-YB | 4 | 7500 | 16000 | 23500 | 600/800 | 3000 | up/down: -8/+17, left/right: -15/+15 |
SQ-B-4-8/17-YB | 4 | 8000 | 17000 | 25000 | 600/800 | 3000 | up/down: -8/+17, left/right: -15/+15 |
SQ-XB-5-6/16-YB | 5 | 6000 | 16000 | 22000 | 600/800 | 3000 | up/down: -8/+17, left/right: -15/+15 |
SQ-XB-5-7/19-YB | 5 | 7000 | 19000 | 26000 | 600/800 | 3000 | up/down: -8/+17, left/right: -15/+15 |
SQ-XB-5-7.5/21-YB | 5 | 7500 | 21000 | 28500 | 600/800 | 3000 | up/down: -8/+17, left/right: -15/+15 |
SQ-XB-6-6/20-YB | 6 | 6000 | 20000 | 26000 | 600/800 | 3000 | up/down: -8/+17, left/right: -15/+15 |

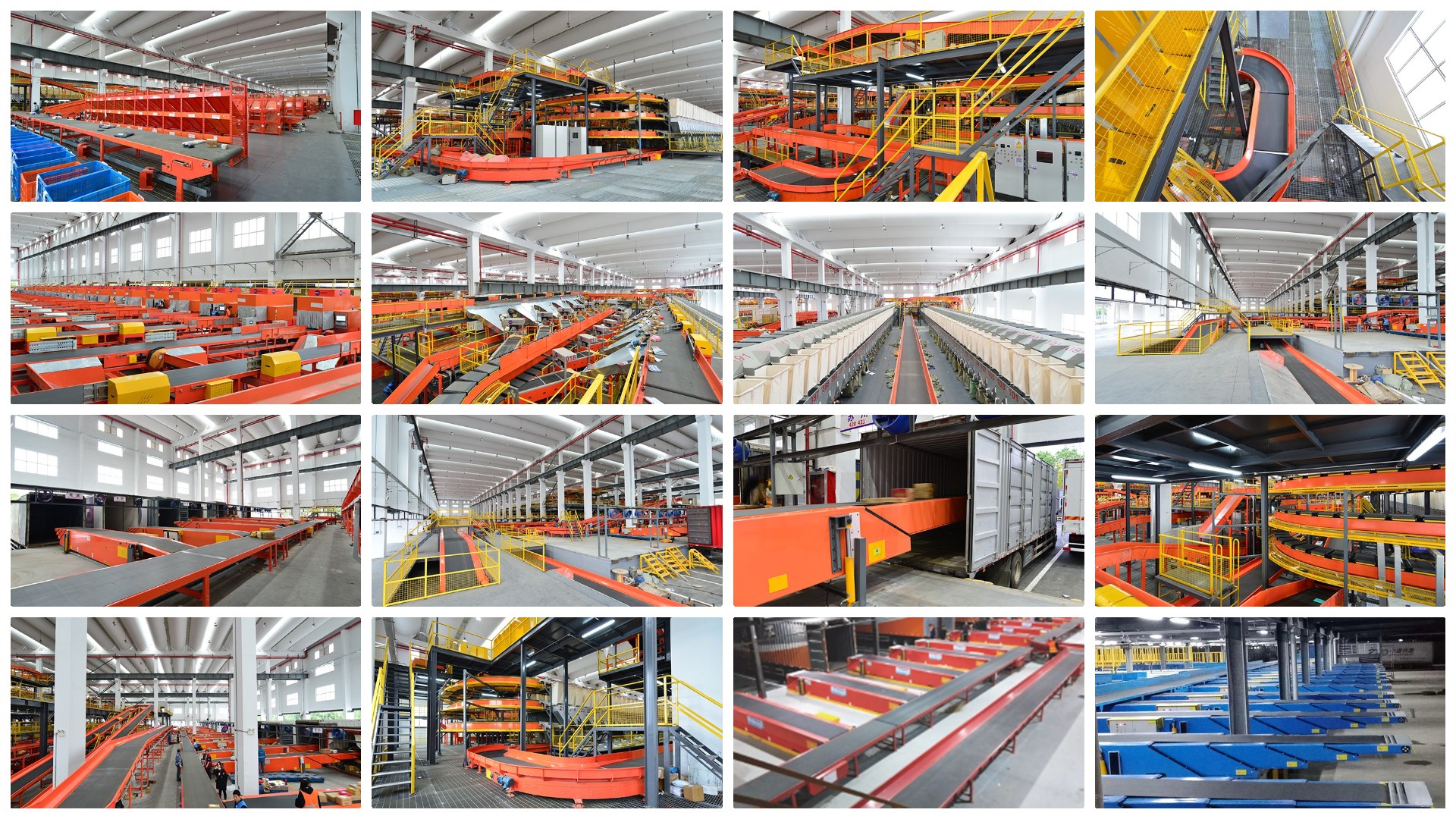

Solution
