GST-250E
GOSUNM
Video
Product Display

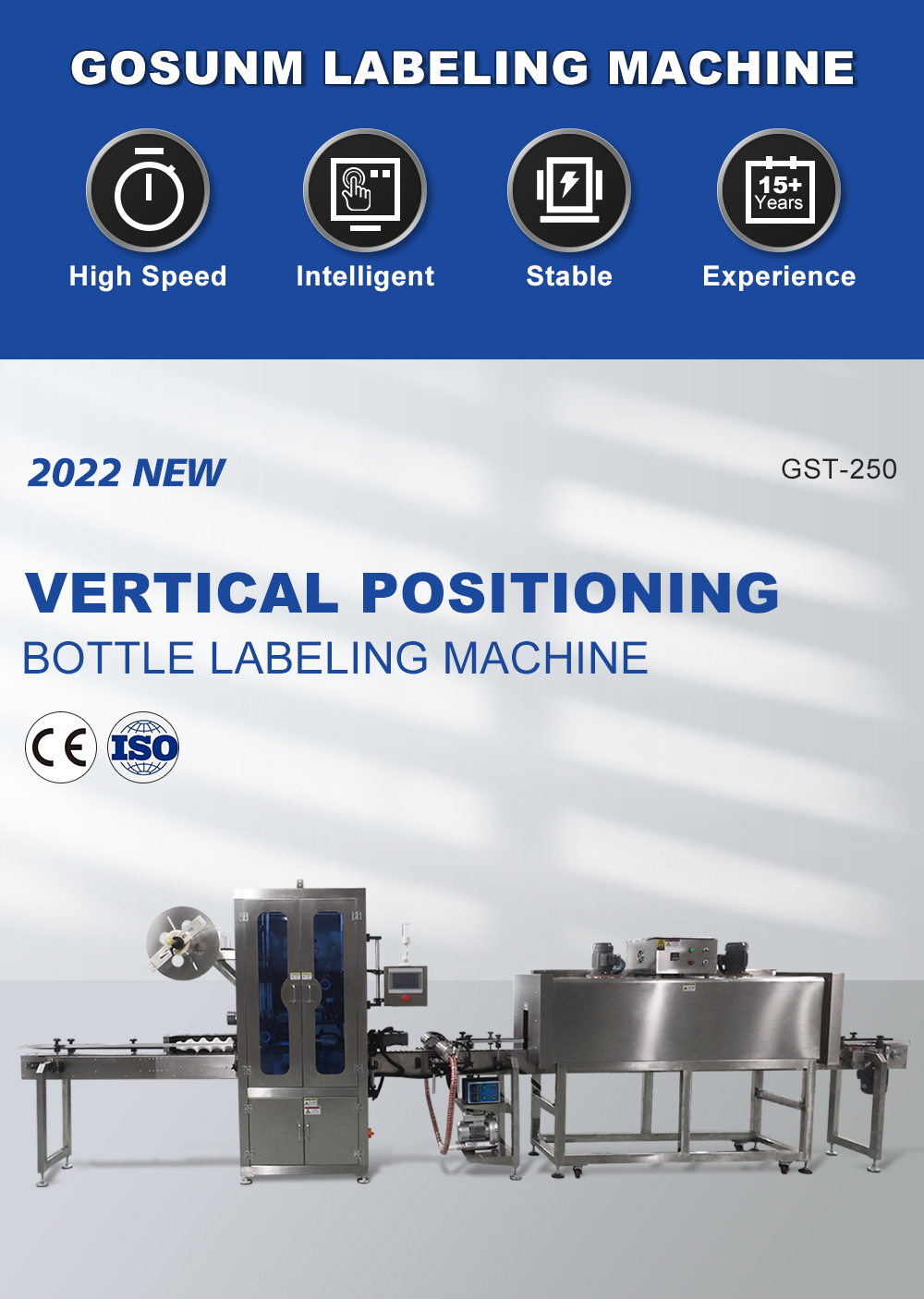

| Product Name | Full-Auto Sleeve Machine with Electric Heat Shrinking Tunnel |
| Model | GST-250 |
| Labeling Speed | 60-200pcs/min (depends on the label size) |
| Conveyor Height | 800mm |
| Product Size | Diameter φ20?80mm, height 10-280mm |
| Label Size(Backing paper) | Length 30-280mm, (backing paper) width10-170mm |
| Distance Between Nearby Labels | 3-5mm0.2mm |
| Label Thickness | 0.03-0.06mm |
| Label Material | PVC/PET |
| Label Roll Diameter | Outer Max.450mm, inner 76mm |
| Surrounding Temperature | 10~40ℂ/span> |
| Surrounding Humidity | 15-85% |
| Power | 10kW |
| Power Supply | AC380V, 50Hz, 3 phase |
| Air Supply | No need |
| Machine Dimension | 7000(L)*1300(W)*1983(H)(mm) |
| Machine Weight | 1100kg |
Product Information
Basing on user's working requirement, varied type of economic to high speed models are available. Auto Sleeve Applicator series speed can be 60BPM to 200BPM with stable work. Gosunm always help our clients to install packaging line & create more production efficiency.

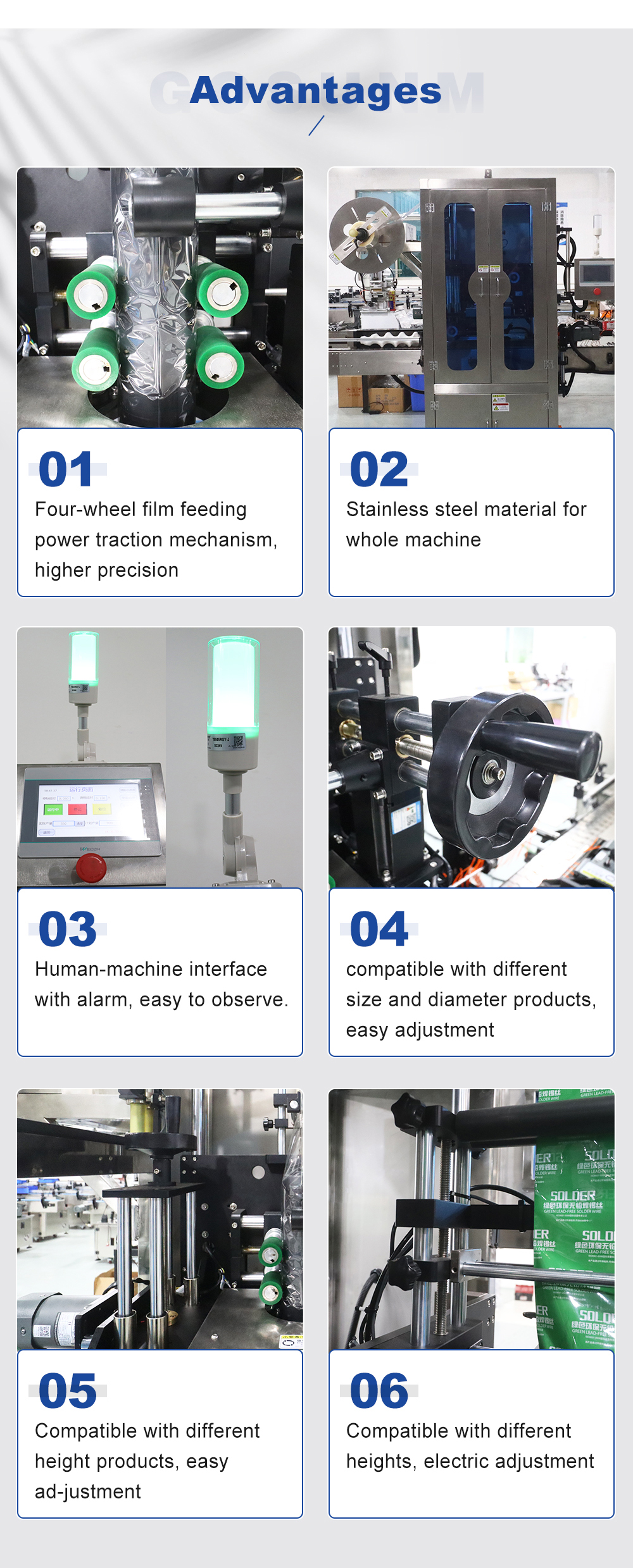

Production Feature
Machine adopted durable SUS 30 cover with nice appearance.
Modularized cutting unit for easy change.
Servo motor systems are adopted for label feeding & cutter to keep high accurate label cutting.
HMI + PLC control system are easy operation with many set of memories to help worker save minutes of adjustment.
Any working failure will be showed on HMI with lighting & buzzing to help worker noting.
The Auto Label Rollers Splicer is one of options; it ca help reduce the film replacing minutes.
Machine is designed matching CE certificate, higher safe standard.
Company Profile
Why you should choose us?
Easy for installment and adjustment, we will divide the device into some big parts, you only need follow the installation video and manual to install the machine.
Small size, improve space utilization, save workshop, some types of our machine can shipped by small airline, save shipping fee cost and time.
1 year warranty, lifetime service, 24 hour online technical support. support on-site installation,adjustment,trainning and maintenance
