Blow Labeling Machine

Weight: about 165kg
Power supply: 220V, 50Hz
Conveying speed: about 30m/min
Labeling speed: 15~25pcs/min
Labeling accuracy: ±1 mm
Applicable label size: lengh 10~150mm; width 10~150mm
Applicable product size: lengh 30~270mm width 30~300mm
Maximum label requirement:roll label, outer diameter 280mm,inner dia 76mm
Availability:
Quantity:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
  • GSL-spider-120

Parameter


Product Description

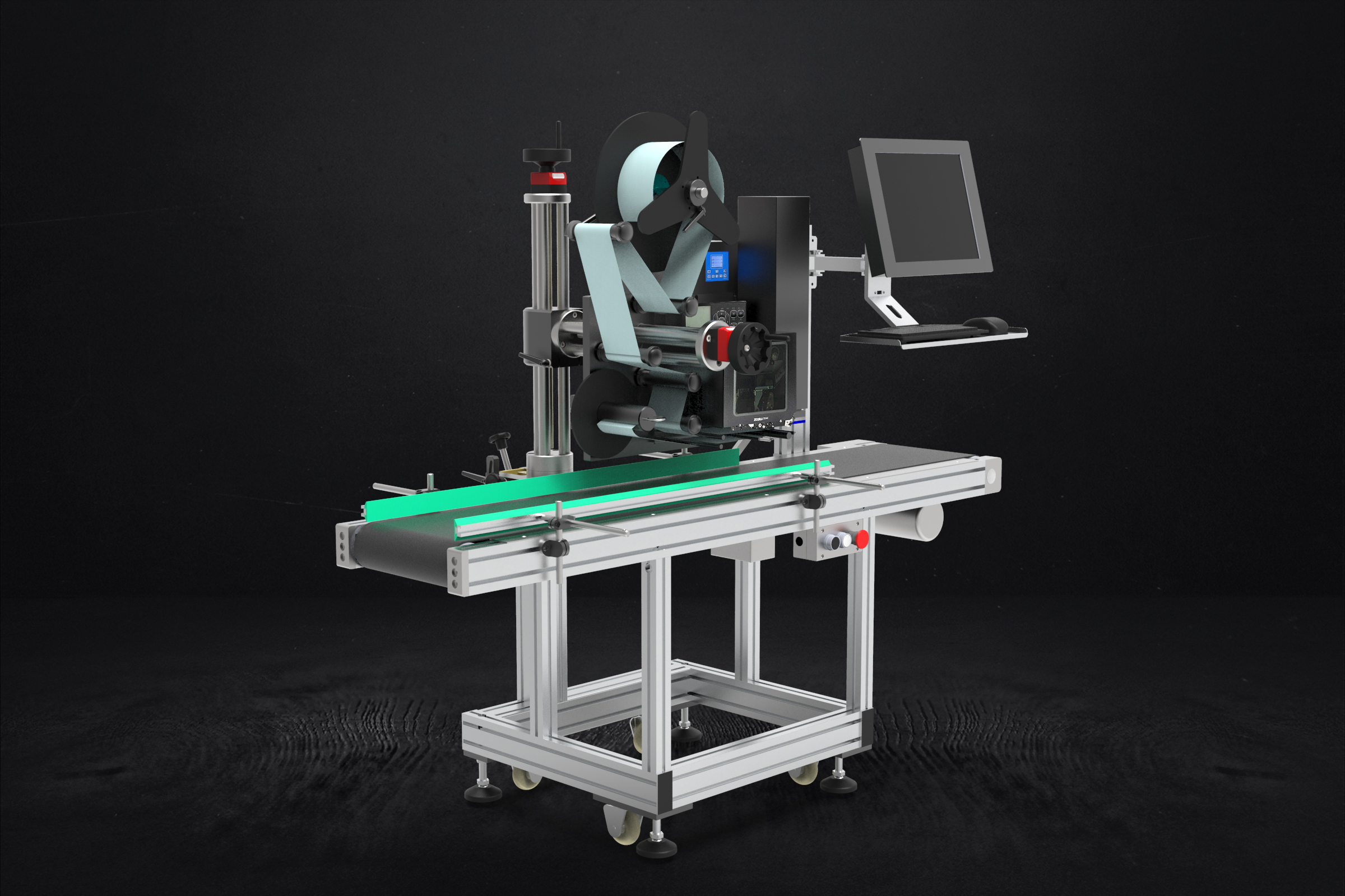

GST-305_渲染 (1)

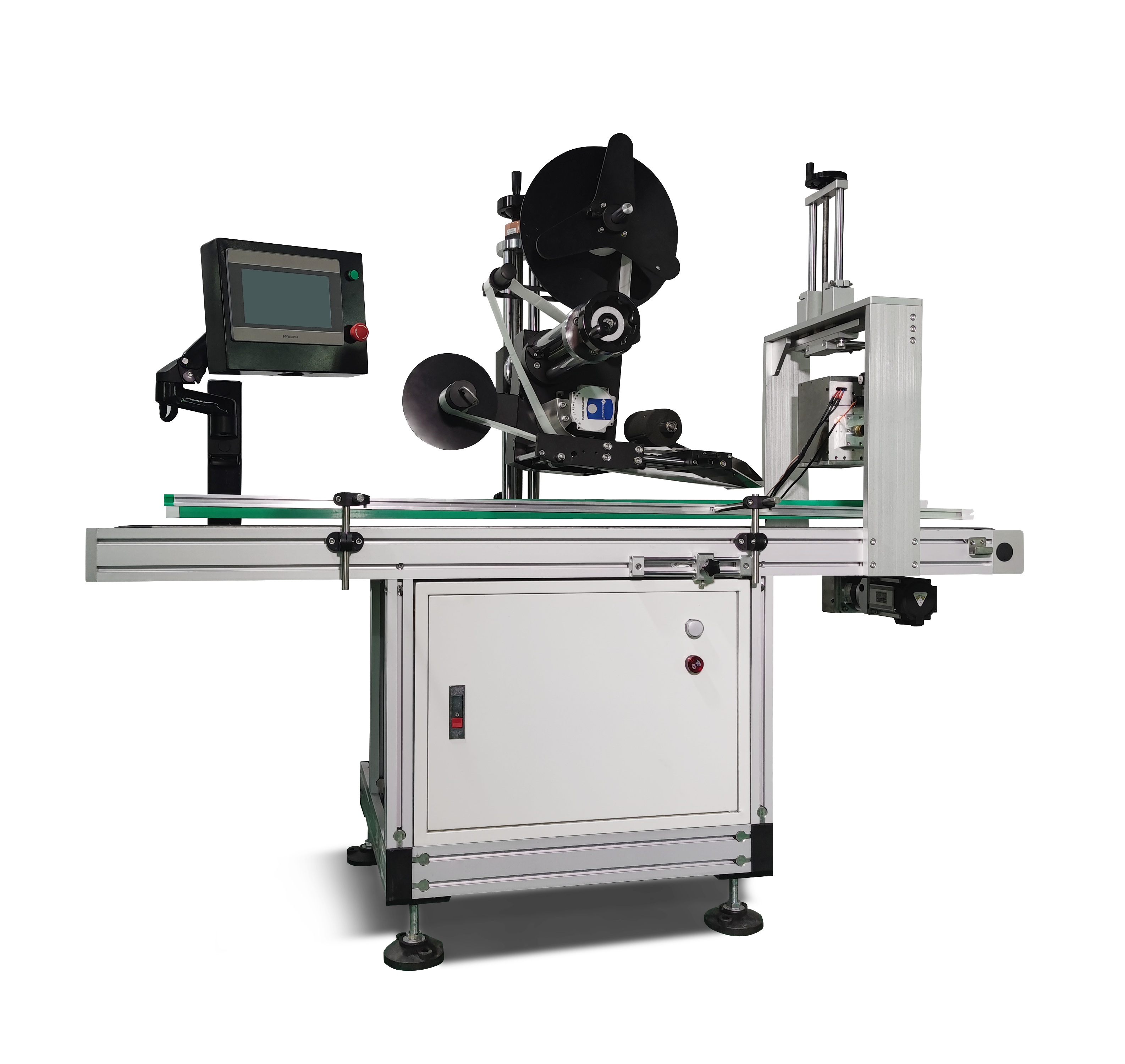

GST-113B_白底 (2)

Standardequipment configuration

a. 1 set blow labeling machine


List of main components

1 GSL-spider-120 blow labeling machine 1set
2 Adjustable rolling label device 2set
3 conveying mechanism 1set
4 Touch screen 1set
5 Aluminium alloy electric box 1set
6 specification and common tools 1set


Self-adhesive label parameters

Roll label in the labeling machine work the entire process, including label delivery, positioning, out of the label, paste and backing paper re-roll, to successfully complete the labeling process, the overall label has the following requirements:

Label spacing:3-4mm 0.2mm, the upper and lower edge of the label and the bottom of the backing paper spacing: 2mm

Surface material:basic grammage 78 g/m2 plus or minus 10%+/span>Thickness: 0.064mm plus or minus 10%

Backing paper:Basic weight 61g/m2 plus or minus 10% Thickness: 0.055mm plus or minus 10%

Consistent release force, uniform thickness, a certain tensile strength, translucent Grassian base paper is generally between 60-80 g, fiber density tightness flatness to be good, not easy to break when labeling, the overall translucency to be consistent, the sensor correctly identify the location of the label.

Tensile force:machine direction: 16kg/25mm Horizontal direction: 7kg/25mm

Tear resistance:machine direction: 25g / sheet Crosswise: 31g/sheet


Before labeling to eliminate the static electricity in the roll label, so that the label is firm out of the label, from the backing paper, because static electricity will cause labeling when not out of the label or the labeling inaccuracy phenomenon, die-cutting to avoid cutting through the backing paper and not out of the label and torn backing paper phenomenon.


Product Features

Machine detail

细节展示


Product Range Flexibility of Our Labeling Machines


Aftersales Service

1. One-year machine warranty, lifetime maintenance service.

2. Experienced engineers provide fast and professional 24 hours online guidance.

3. Provide complete teaching videos and instruction manual, easy to operate and maintain. The video of the operation is stored on a USB shipped with the machine
