GST-212
GOSUNM
Video
Gosunm has 15 years of experience in developing and manufacturing self-adhesive labeling machines, and is one of the best labeling machine manufacturers in China.
Product Picture

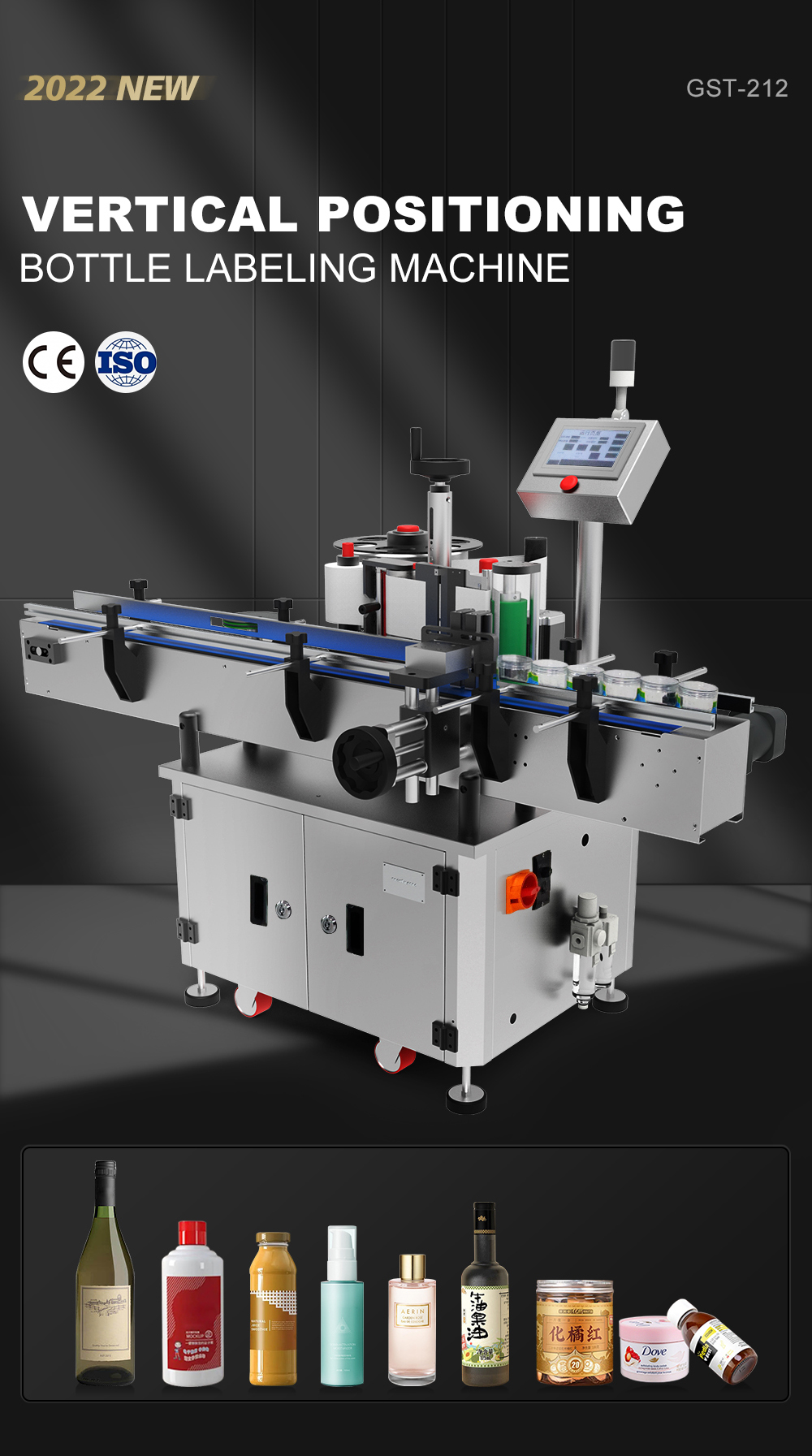

| Product Name | Automatic Round Bottle Labeling Machine (Pneumatic Push) |
| Model | GST-212 |
| Labeling Accuracy | 1mm |
| Labeling Speed | 10-45pcs/min (depends on the label size) |
| Product Size | Diameter φ20-150mm, height 10-300mm |

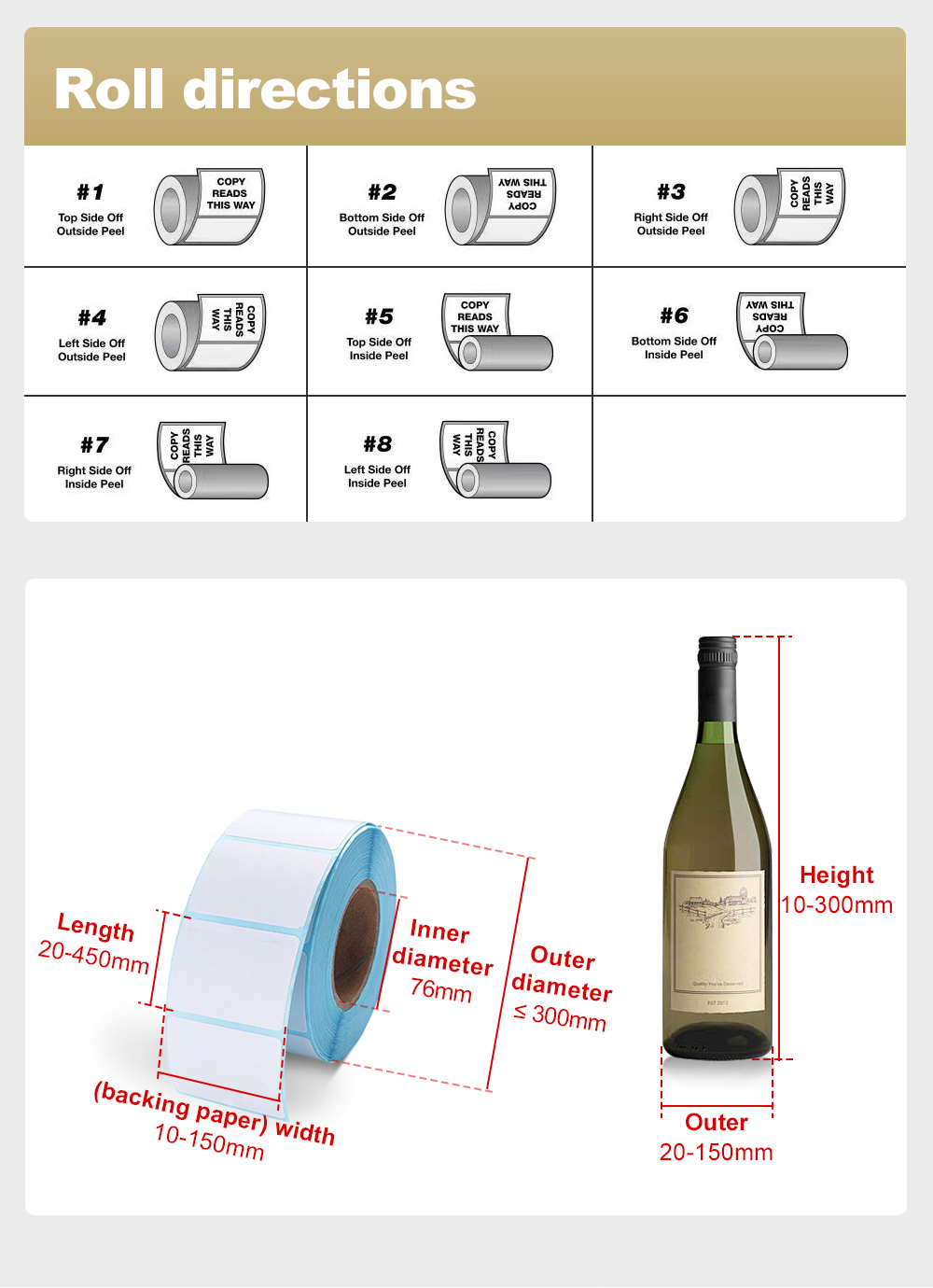

| Label Size(Backing paper) | Length 15-450mm, (backing paper) width10-150mm |
| Conveyor's Height | 80050mm |
| Label Roll Diameter | Outer Max.250mm, inner 76mm |
| Power | 1kW |
| Power Supply | AC220V, 50Hz, single phase |
| Air Supply | 0.5-0.8MPa, 10L/min |
| Working Environment | 10~40ℂ/span> |
| Surrounding Humidity | 15-85% |
| Machine Dimension | 1800(L)*1100(W)*1300(H)(mm) |
| Machine Net Weight | 180kg |
| Package Crate Dimension | 1850(L)*1150(W)*1400(H)(mm) |
| Machine Gross Weight | 230kg |

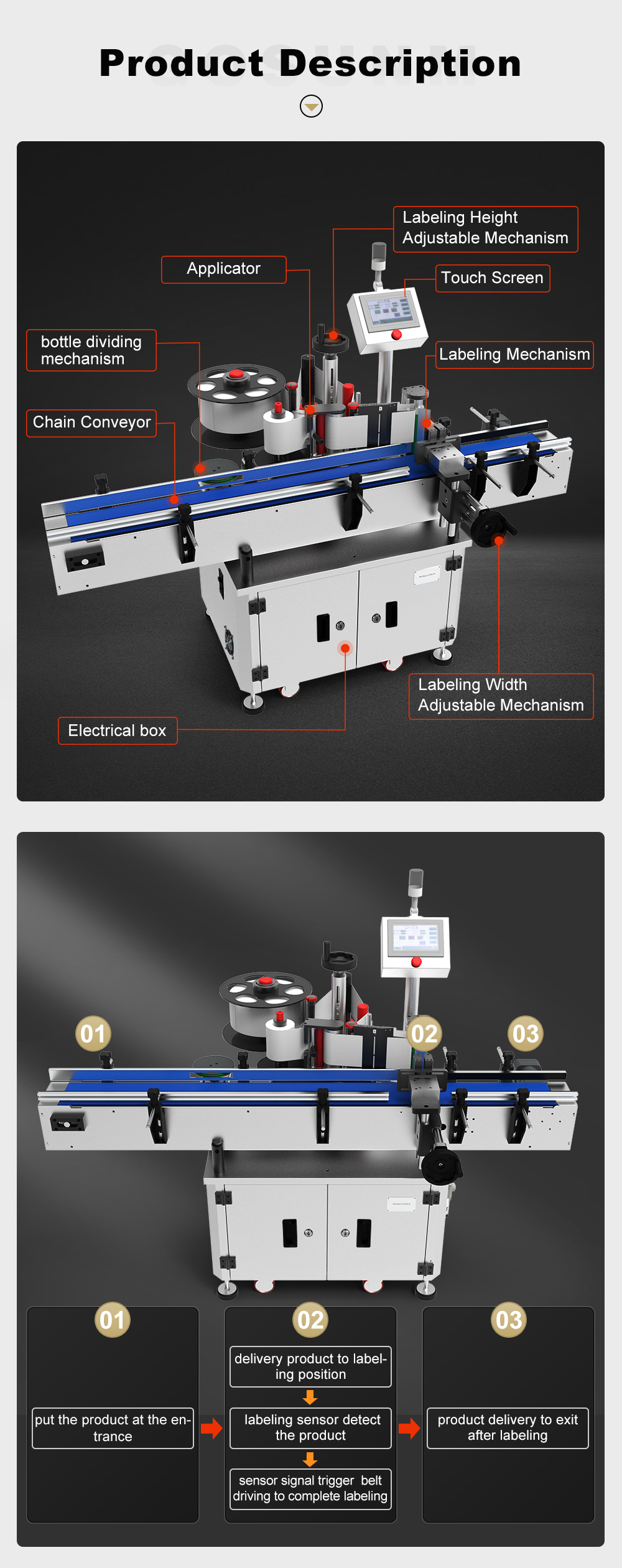

Product Description
Round Bottle Labeling Solution
Gousnm has 15 years of experience in labeling machine manufacturing and has developed standardized solutions for common bottles, solving the labeling of different size round bottle containers through modular labeling heads, conveyor belts and adjustment devices.Gosunm can also complete customization services for non-standard products according to customer requirements. It is a manufacturer of labeling machines with R&D and creativity.
Production Line
Application to different sizes of bottles
Suitable for conical bottles.
Can be used alone or connected to a production line.
Many different functional accessories for you to choose from.
In addition to offering standard products, we also support customized products.
Aftersales Service
1. One-year machine warranty, lifetime maintenance service.
2. Experienced engineers provide fast and professional 24 hours online guidance.
3. Provide complete teaching videos and instruction manual, easy to operate and maintain. The video of the operation is stored on a USB shipped with the machine
