Automatic 1+2 KF94 Fish Mask Machine

Equipment configuration (standard and optional)

No.	Equipment name	Qty	Unit
1	Automatic KF94 mask body machine GSKZJ-107-B	1	Set
2	KF94 mask ear loop welding machine	2	Set
3	Correction mechanism (optional)	4	Pcs
4	One to two conveyor	1	Pcs
5	Protective covers of main body machine + welding machine (optional)	1	Pcs
6	Waste collection device (optional)	1	Pcs

Non-woven fabric parameters:

a. 20/50gsm, width 260mm (non-woven fabric)

b. 25gsm, width 260mm (meltblown non-woven fabric)

c. 25gsm, width 260mm (meltblown non-woven fabric)

d. 30gsm, width 260mm (non-woven fabric)

e. Nose strip, roll material, width about 4mm(Dual core), thickness about 0.6"0.8mm, outward ear strap, the size is 205*80mm.

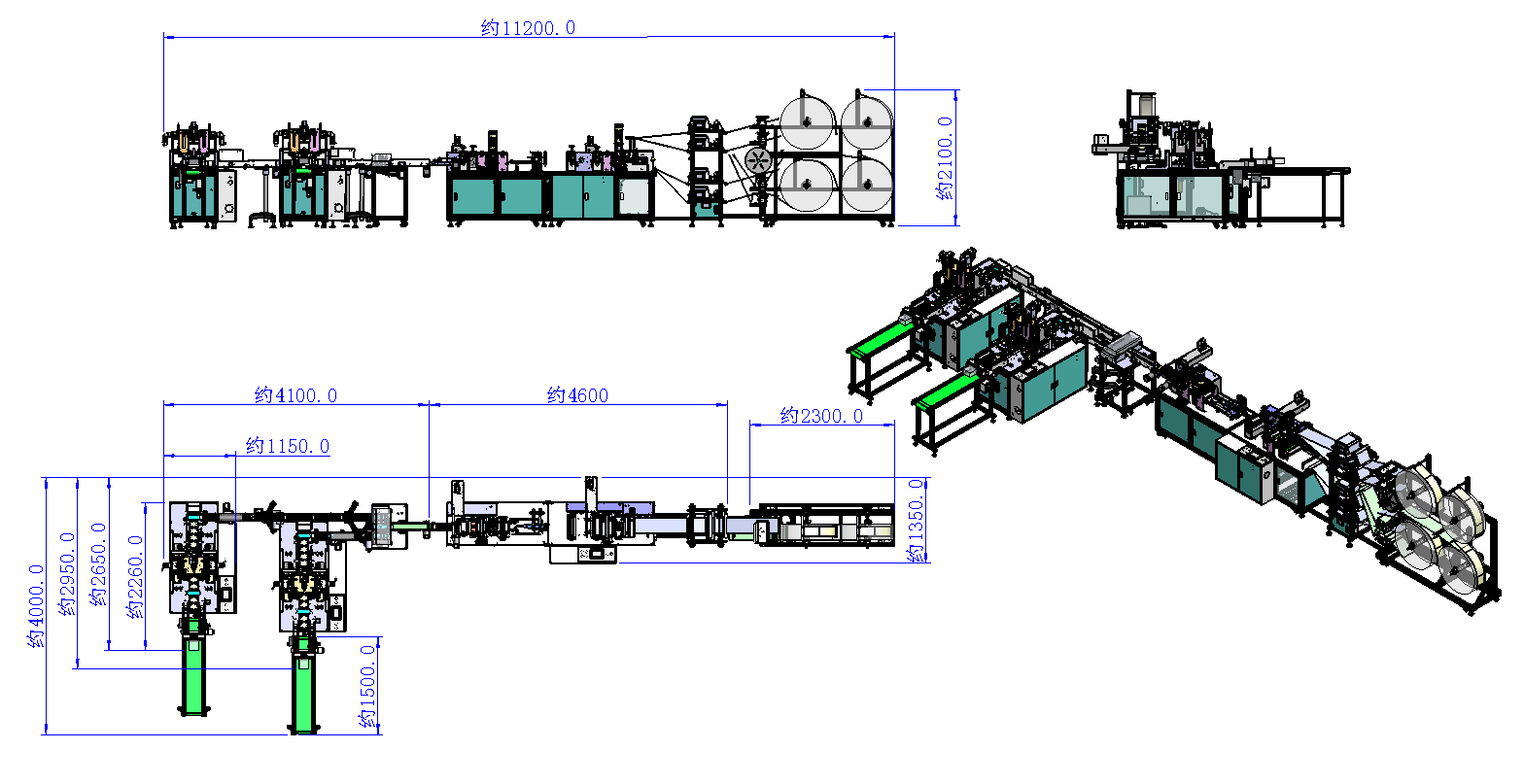

1. Machine Layout

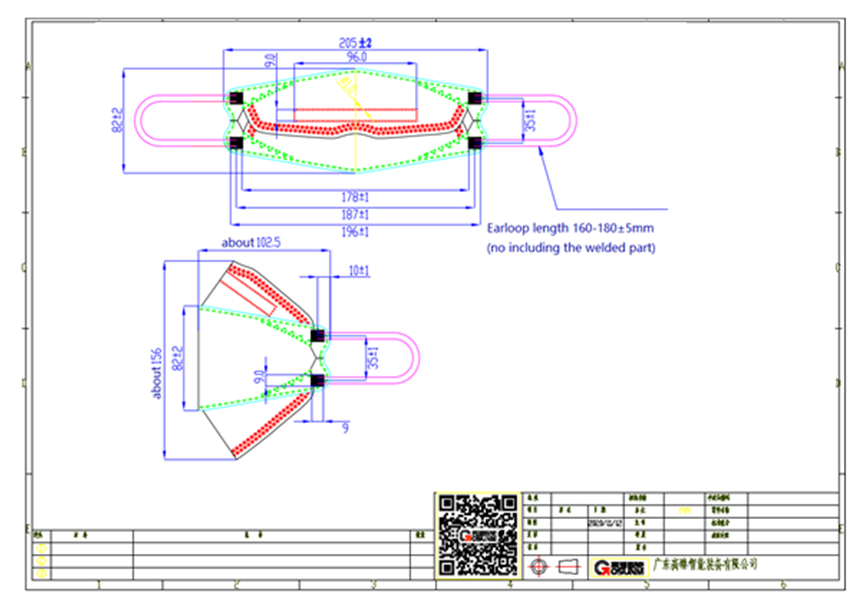

1.The applications: KF94 Fish Type Masks

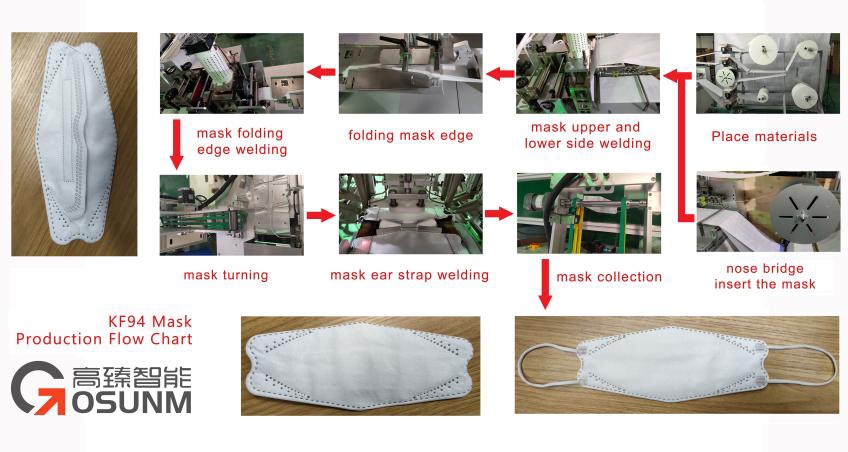

3.KF94 9332 Masks Production Flow

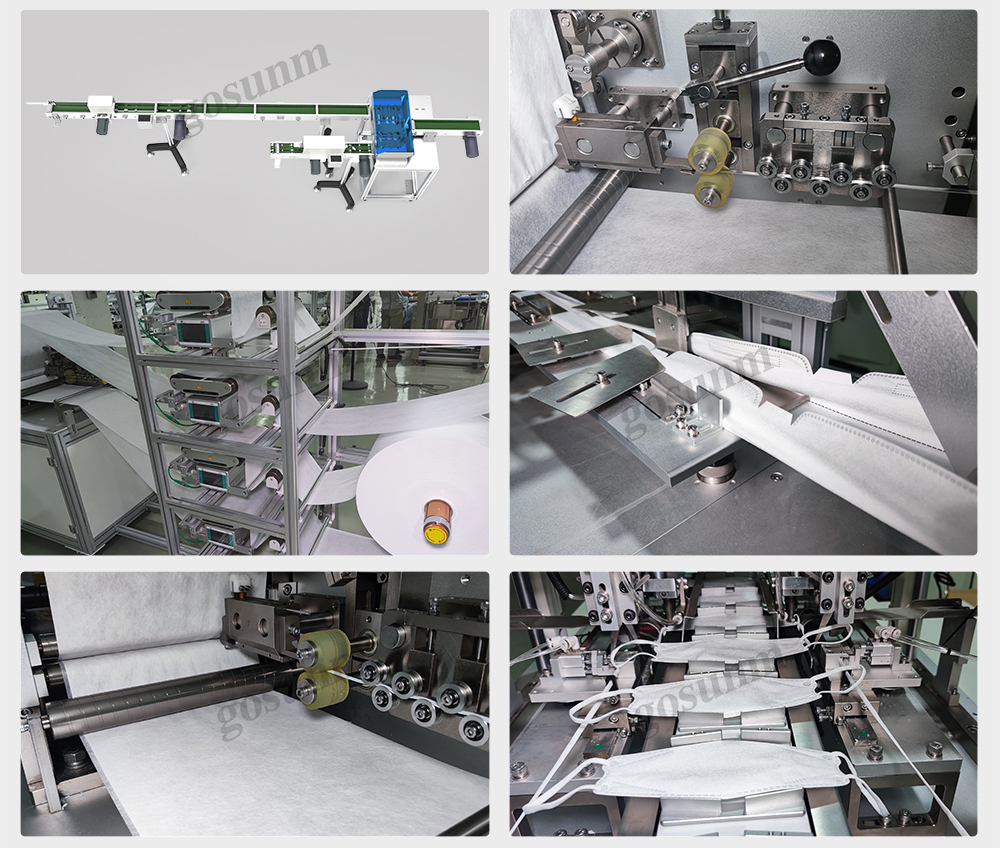

4.Machine detail

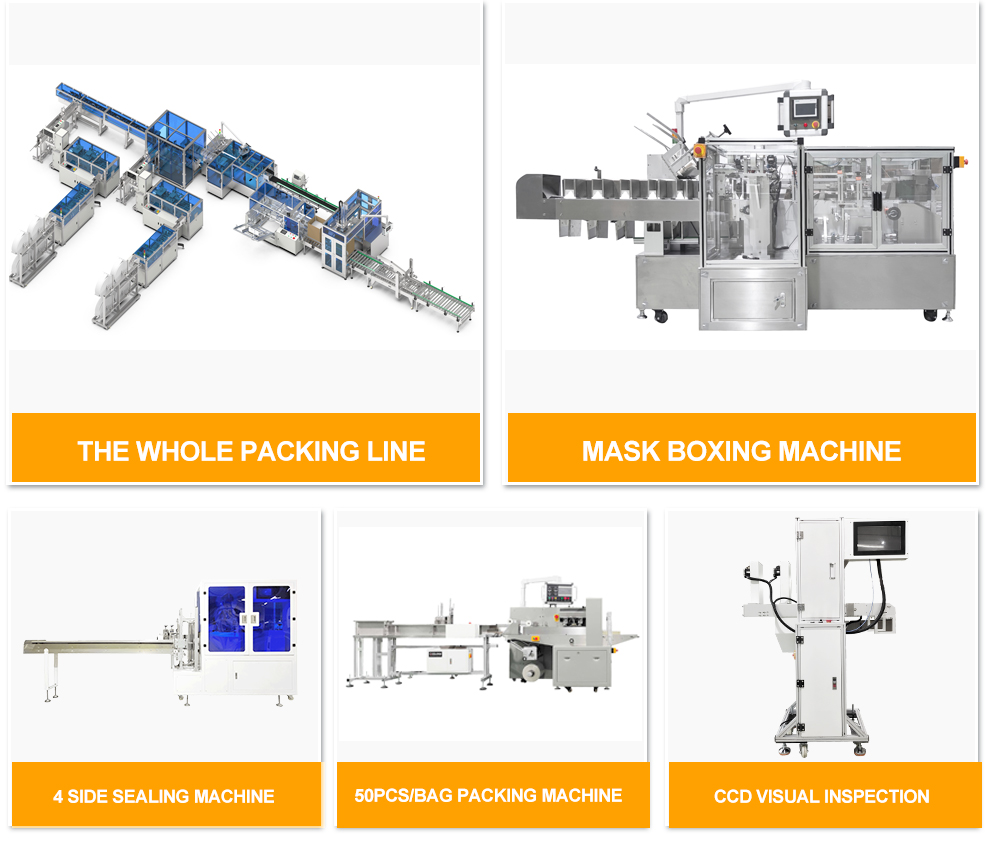

5.Optional additions

1. One-year machine warranty, lifetime maintenance service.

2. Experienced engineers provide fast and professional 24 hours online guidance.

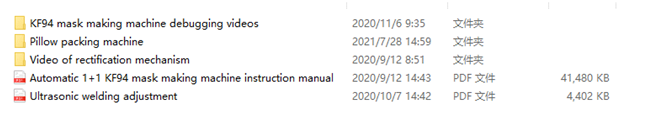

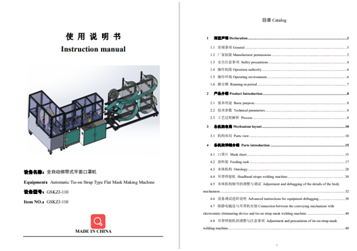

3. Provide complete teaching videos and instruction manual, easy to operate and maintain. The video of the operation is stored on a USB shipped with the machine
