Video

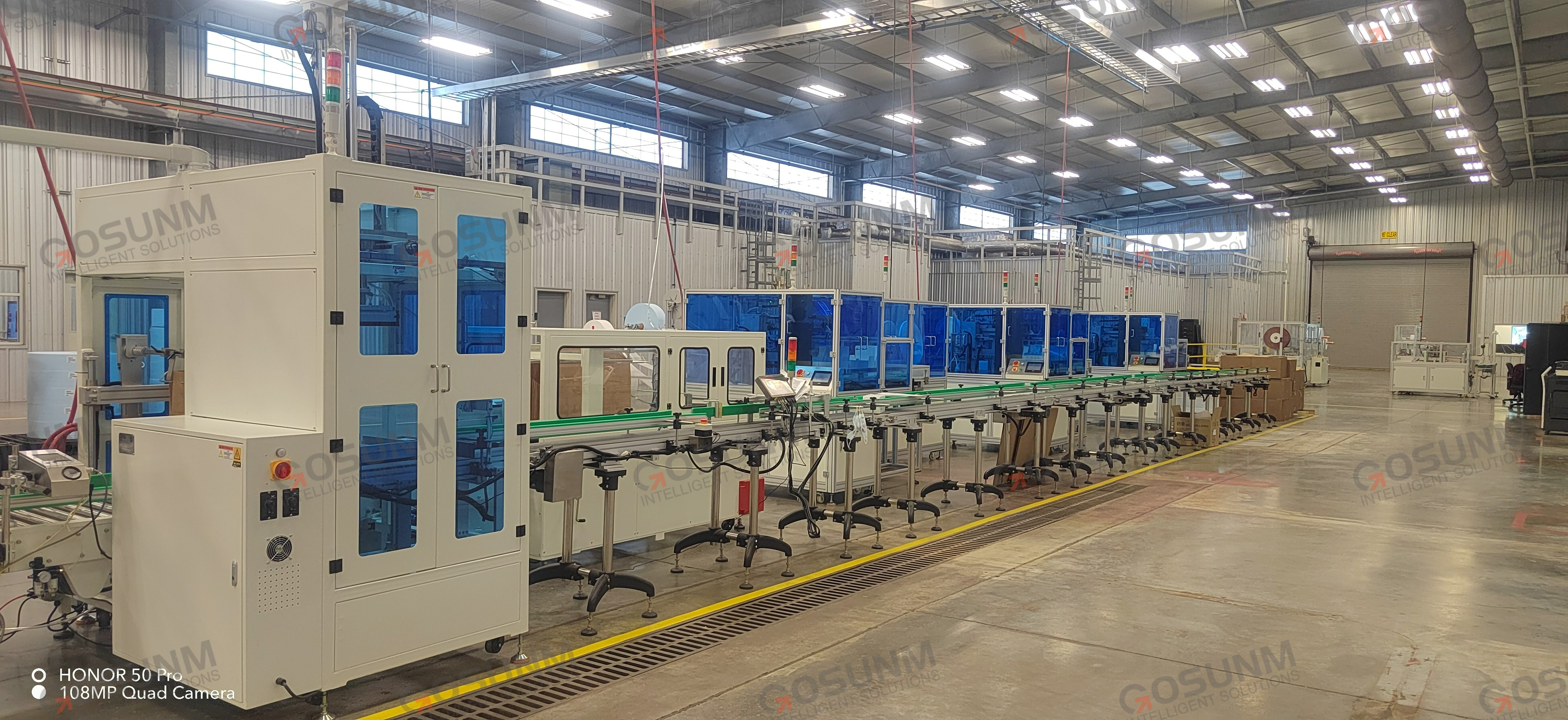

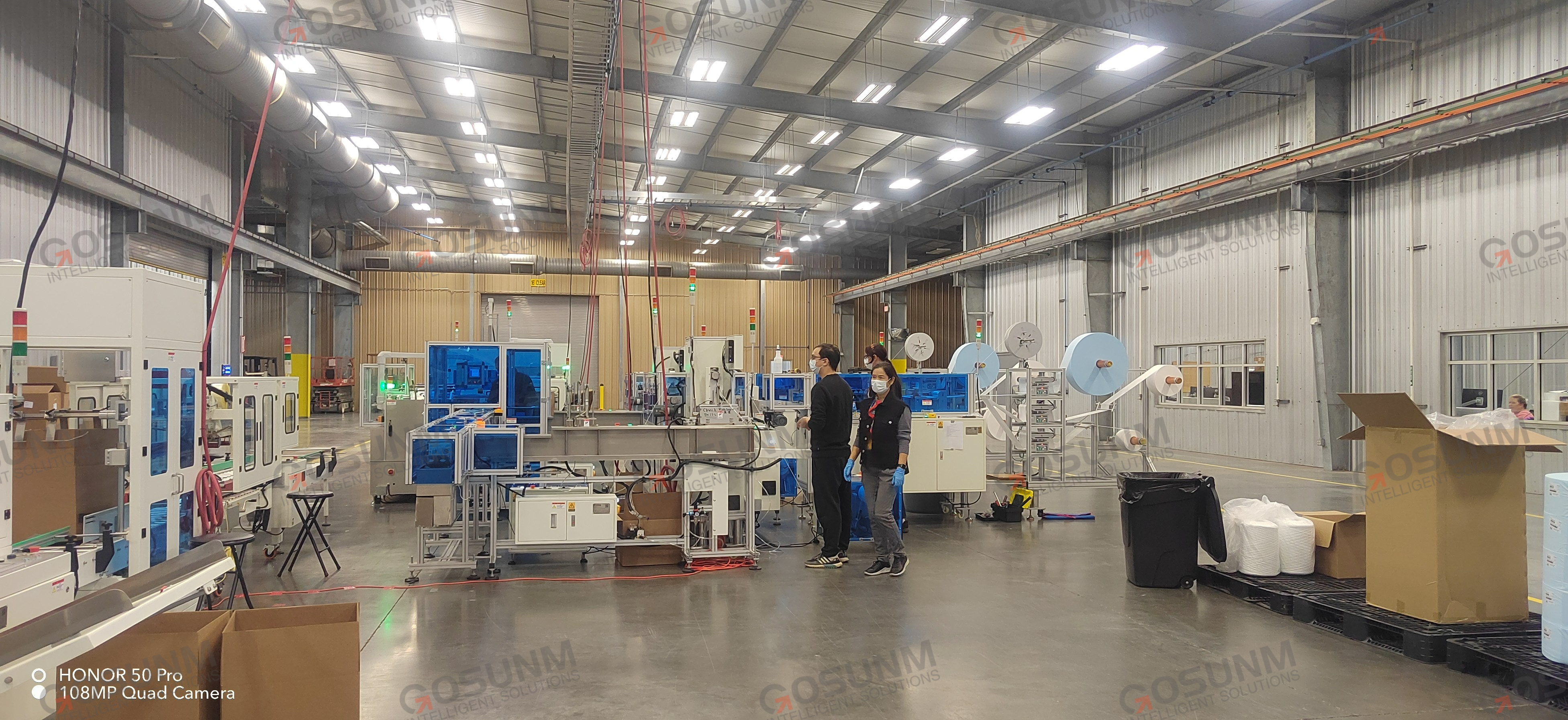

Product Pictures
Product Description
Standard equipment configuration
| No. | Equipment name | Qty | Unit |
| 1 | Automatic mask machine (including 6 tension mechanism; standard) | 1 | Set |
| 2 | Pillow packing machine (standard) | 1 | Set |
| 3 | 6 correction mechanism (optional) | 1 | Pcs |
| 4 | conveying mechanism (optional) |
1 | Pcs |
| 5 | Logo pad printer | 1 | Pcs |
| 6 | Nose foam sticking mechanism | 1 | Pcs |
| 7 | Waste recycling device | 1 | Pcs |
| 8 | CCD inspection machine | 1 | Pcs |
| 9 | UV sterilization machine | 1 | Pcs |
Equipment technical parameters
1. Equipment efficiency: 80-100pcs/min：/p>
2. Voltage: 380V/220V,50/60HZ：/p>
3. Equipment size: (L)14900mm*(W)1500mm*(H)1680mm
4. Equipment wight: About 2800kg
5. Pass rate: more than 95%
This 3ply face mask making machine uses ultrasounic to produce finished masks automatically. Including special optional function (Anti fog film welding and sponge nose wire welding, pringting) nose wire feeding, earloop welding, folding, forming and cutting, waste collected, the mask produce can be finished just in one machine.
From materials to packed mask, all PLC control. Effectively reduce man-made pollution. It only requires one worker to operate.
Gosunm is able to offer all kinds of mask production line, can be equipped with inspection machine, packaging and boxing machine , and can also provide customization service such as add logo on the mask, install protect panel accordingly to meet the markets needs.
